2 In 1 2-Way Port Cable Splitter – Cable Splitter Port, Simultaneous Adapter Port Connections | Lightweight Reliablee Splitter Port, High-Performance Networking Equipment Perfect For Computers

Price: £3.09
(as of Jun 08, 2025 07:51:27 UTC – Details)

Features:
1、Zinc die-cast housing, tin-plated
2、Light weight and compact size
3、Easy installation with two edge hole sites
4、Screening factor: 5-2400MHz≥100dB
5、Low insertion loss, high isolation, perfect performance
6、Designed for SATV/CATV
7、 passing-24V 0.8A(MAX.)

Specifications
Frequency Range (MHz) Insertion Loss(dB) Mutual Isolation(dB) Return Loss(dB)
5-40 ≤3.5 ≥14 ≥10
40-1000 ≤3.8 ≥22 ≥12
1000-1750 ≤4.0 ≥20 ≥12
1750-2400 ≤4.5 ≥20 ≥10

Packing List:
1 x Satellete 2-Way Splitter

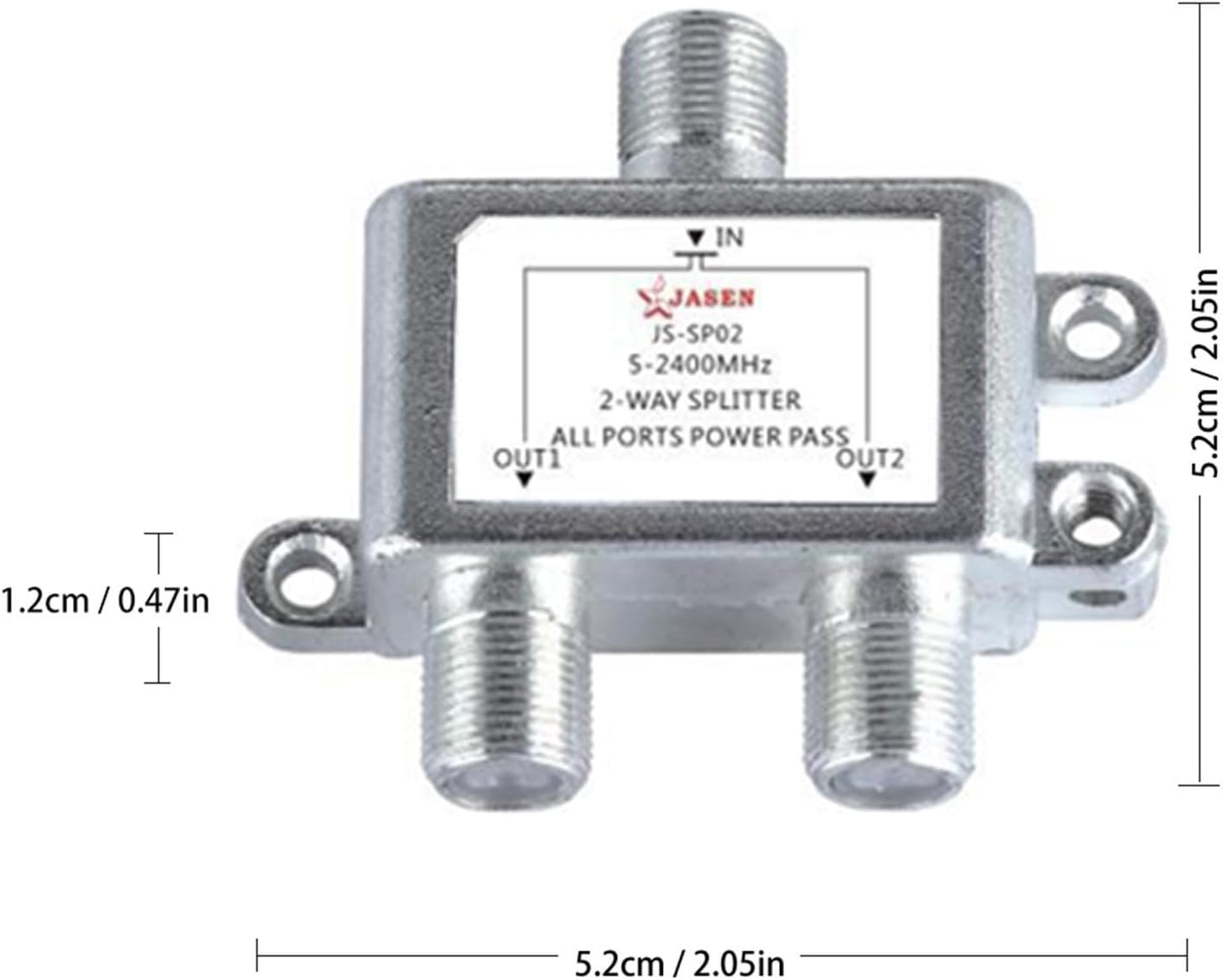

Package Dimensions ‏ : ‎ 16.99 x 15.01 x 2.69 cm; 31.75 g
Date First Available ‏ : ‎ 7 Jan. 2025
Manufacturer ‏ : ‎ Generic
ASIN ‏ : ‎ B0DSG2LKL3
Item model number ‏ : ‎ 7S374761N7JU7ILQ85
Country of origin ‏ : ‎ China
Guaranteed software updates until ‏ : ‎ unknown

【Good Quality Coaxial Splitter】Zinc die-cast housing with tin plating and F-type connectors, which are weather resistance, rust-proof, and more stable. Get your good quality, long life span. Suitable for more occasions, such as indoor, outdoor, wet, dry, or humid.
【Low Signal Loss】The frequency range of this coax splitter supports up to 5-2400MHz (2.4GHz), and an internal circuit board for better reliability/durability. High shielding structure with low insertion loss, high return loss and isolation for better performance TV, satellite and all other devices’ signal.
【Installation Steps】Prepare the coaxial cable and F-type male connector. Strip the coaxial cable. Connect the coaxial cable to F-type male connector. Connect the coaxial cable to the coaxial splitter. In order to make your satellite connection balance and easier, all coaxial ports of the dispenser are passing.
【Easy to Use】High Performance Satellite Splitter all coaxial ports are passing, which can make your satellite connection much easier. And coax cable splitter combined with the sealed housing ability to withstand 15psi of internal pressure and waterproof protection for the electronic components inside the device.

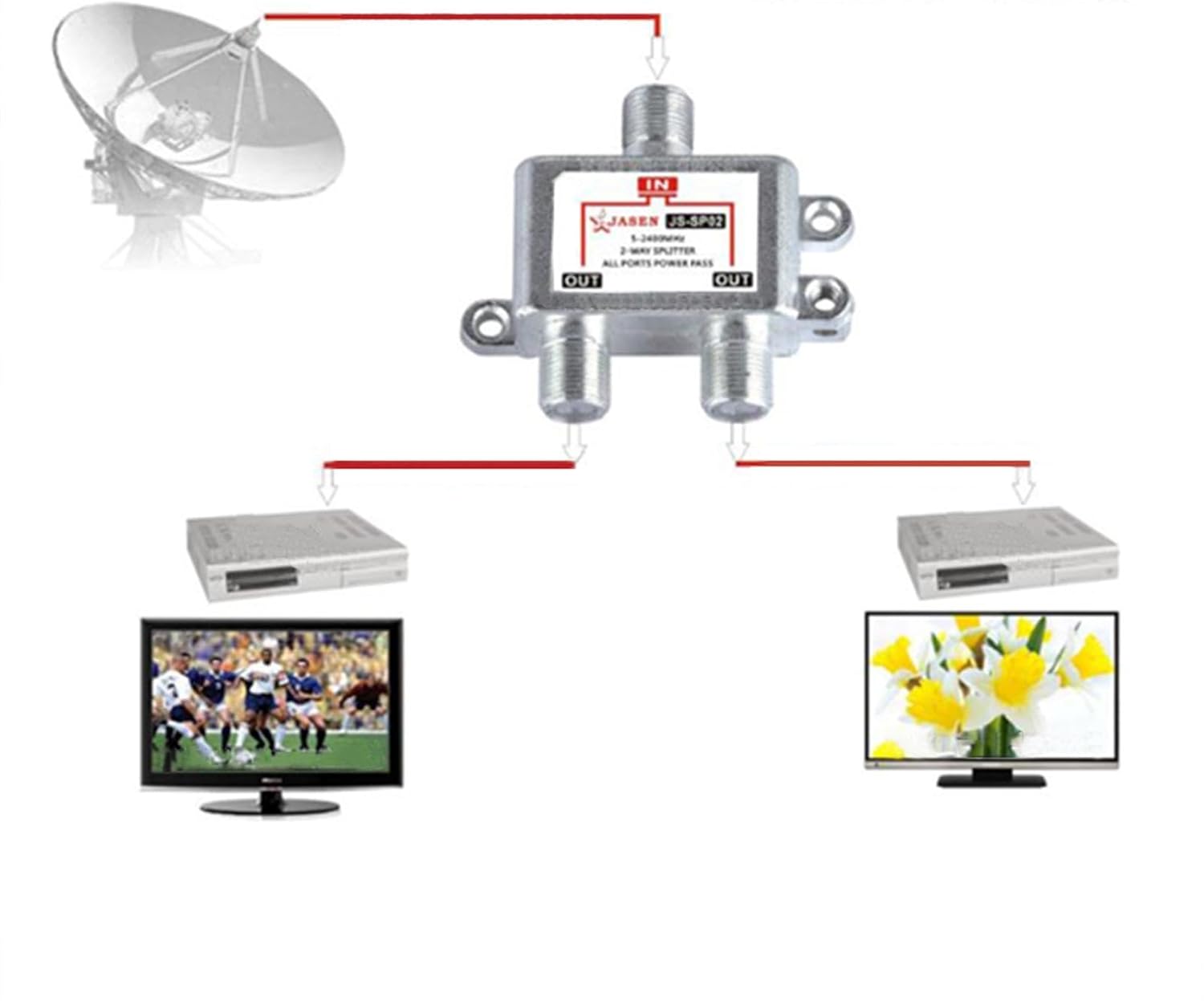

【2-Way Coax Cable Splitter】Coaxial Cable Splitter is used for splitting a single digital signal to up to 2 devices. It works with cable TV, satellite, high speed internet or camera, and cable TV, amplifying antenna, amplifier, and other coaxial devices.
