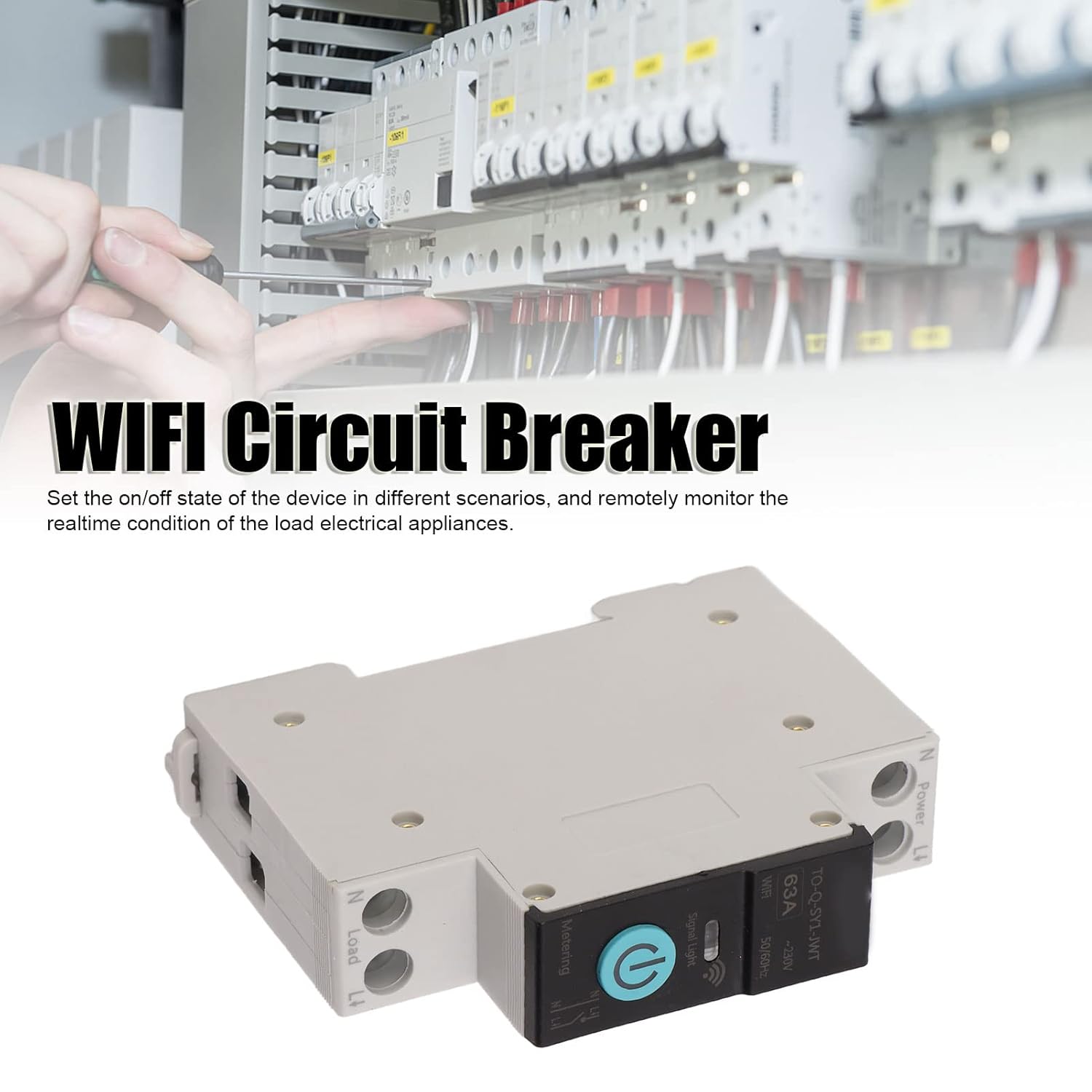

Din Rail Circuit Breaker Smart Wifi Switch, Dual Pole Circuit Breaker, Smart WIFI Switch Mobile Phone Remote Control 3 Timing Modes for Household Appliances (63A)

Price: £21.91
(as of Jun 05, 2025 05:24:24 UTC – Details)

Product Description

Lighting Description:

1. The LED indicator shows a steady blue light, indicating that the switch is on.

2. The LED indicator light is off, indicating that the switch is in the off state or off‑grid mode. (In the off grid mode, the manual switch has no status indicator, please pay attention to operation safety).

3. The LED indicator light flashes blue slowly, indicating that the product is in pairing mode.

Specification:

Item Type: Din Rail Circuit Breaker

Material: Copper, PA66

Application: Intelligent home control

Panel Color: Black

Applicable APP: For Tuya Smart

Rated Working Voltage: AC 230V

Control Type: Remote control, manual

Number Of Poles: 1P+N (N pole through)

Control Method: For SigMesh/ for ZigBee

Rail: DIN35

Size: Approx. 82x68x18mm/3.23×2.68×0.71in

Steps:

1. Connect the wire from the upper end of the circuit breaker to the lower end, please make sure the wiring is correct and the WiFi signal is strong.

2. Turn on the phone’s Bluetooth and WiFi, open the APP, then long press the power button, wait for about 5‑10 seconds, the LED indicator will slowly flash blue.

3. After waiting for a while, the pop up window will pop up, click the + in the upper right corner, then select the Add Device button, and wait for the device to be recognized.

4. Enter the wifi account password and click Next, and wait for the connection to the network.

5. Connect to the network.

Package List:

1 xDin Rail Circuit Breaker

[Smart Home Life]: You can monitor the usage of all household devices, and can remotely control and schedule control to make life more intelligent
[3 Timing Modes]: Timing mode/countdown mode/cycle timing, when you get off work, you can set the time to turn on the air conditioner in advance, or set other equipment
[Multiple Functions]: Set the on/off state of the device in different scenarios, and remotely monitor the realtime condition of the load electrical appliances
[Premium Copper and PA66]: Copper has good conductivity, PA66 flame retardant material, high temperature resistance, effectively improving the safety of use
[Safe to Use]: Equipped with colored indicator lights, you can check the operation status at a glance; Intelligent protection, easy to use, reliable, support short circuit protection, overload protection
