FUSYTULY WiFi Tuya Fingerprint Access Control System Kit Biometrics Waterproof RFID Keypad 125KHz 13.56MHz with Electric Strike Door Lock, DC12V Power Supply + 10pcs Keyfobs Tags

Price: £239.00 - £54.85
(as of Jun 21, 2025 16:08:52 UTC – Details)

Product Description

FUSYTULY WiFi Tuya Fingerprint Access Control System Kit Biometrics Waterproof RFID Keypad 125KHz 13.56MHz with Electric Strike Lock

Pack List (Not including remote transmitter)

A complete access control system kit set including:

Access Control keypadAccess Control Power supplyElectric Strike LockDoor Exit button10pcs 125KHz Keyfobs

Support Tuya APP, Fingerprint, RFID Card, Password, Remote control transmitter to unlock the door

Multiple Door Opening Methods. Working with Dual Frequency of 125KHz and 13.56MHz

1) Tuya APP language supports Chinese, English.2) Can add fingerprints, password, RFID cards in the Tuya APP, it’s very convenient.3) Can unlock the door with Tuya APP unlocking button, or Tuya password.4) Can unlock the door with the bluetooth if mobile phone without wifi.5) A periodic password can be set, and the password is valid for a certain period of time.6) Can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.7) Supports sharing password via WeChat, Email and SMS.8) Can view unlock records. Click reminder information to view logs.9) Can set Management cards, very easy to program. Don’t need to connect to computer.10) Supports 315MHz version of remote transmitter to unlock the door. (The remote transmitter is not included, due to battery limitations.)

Tuya APP Setting Instruction

1) Scan QR code to download Tuya APP, or Search Tuya in App store to download it.2) Press # *123456 # 68 # on the access control keypad, wait for 10 seconds, the indicator light flash and start pairing, pair with the mobile phone via WiFi. (Don’t forget this step)3) Turn on Tuya APP to add new equipment.4) Select “Auto scan”, click “Searching”.5) Connect with available devices, click “Next”. Choose Wi-Fi and enter password, click “Next”.6) Connecting, Added successfully, click “Done”.7) Click setting, turn on “remote unlock setting”.8) Select user, click “+” to add user, fill in name, click next step.9) Add user fingerprints, Code, cards, remote control transmitter10) Input the related information and click “Next step”.11) Add temporary code, click “Once'”, input code name, click “Save offline code” , Done. (Notice: The code valid time for 6 hours and only can be used once.)12) Add ordinary user by clicking ordinary member “+”.

Access Control Keypad

ldentification method: Tuya APP, Fingerprint, RFID Card, Password, Remote control transmitter.User Capacity: 100 Fingerprints, 8000 RFID cards, 1 public password user capacity.Record capacity: Mobile phone APP remotely view the latest door opening information.Working frequency: 125KHz and 13 56MHz dual frequency.Card reading type: support EM ID and MF IC compatible card. Can set Management cards.Doorbell button: support DC12V wired doorbell.Waterproof function: IP68 waterproof, can be installed indoor and outdoor.Wiegand signal: WG26 / WG34 input/output. Supports machine data copy function.Working voltage: DC 12V; Working current: ≤30mAMaterial: ABS plastic ; Product size: 138*70*18mm

NC Electric Strike Lock

Material: aluminium alloyWorking Voltage: DC12VWorking Current: 110mA-250mAPerformance Testing: 1000000 time aging testDimension: 150*28 mmOpening Mode: 90 degree swinging doorSecure Mode: NC type / fail safe type ( Locked when power on, open when power off )Suitable for wooden door, metal door

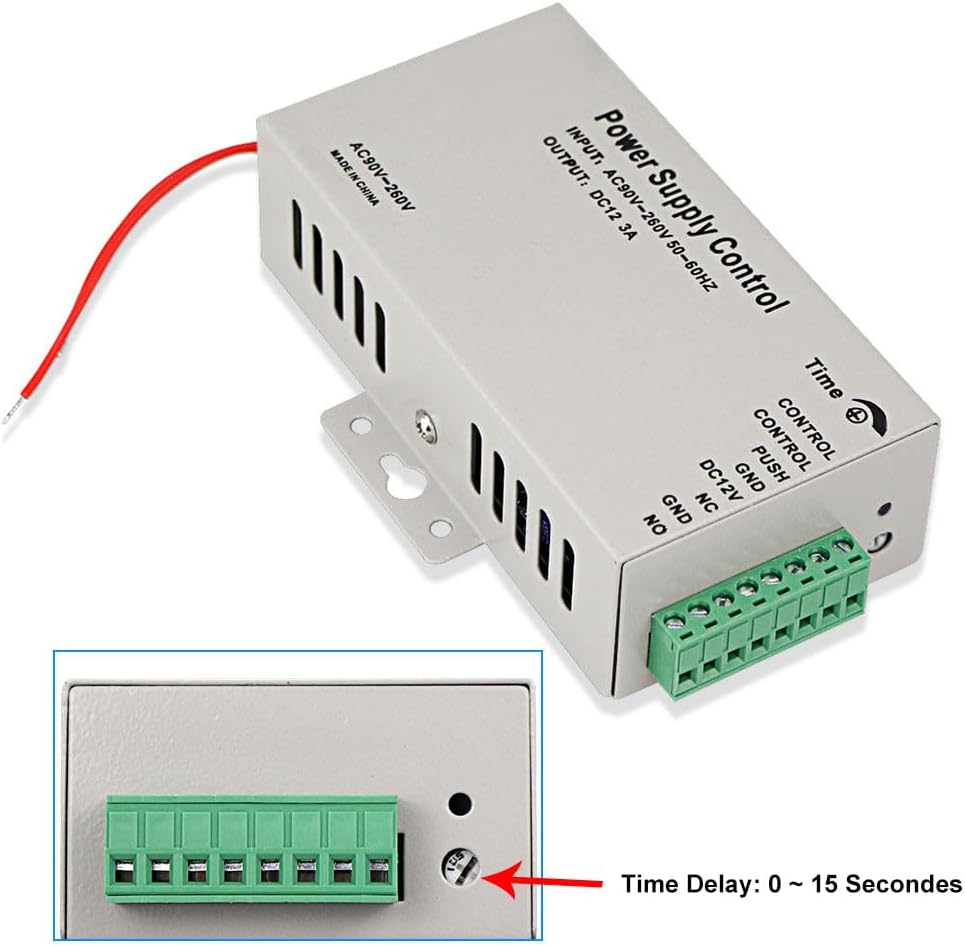

Access Control Power Supply

Material: stellAC input: Standard AC90V-260V / 50-60HZDC output: DC12V/ 3 ATime delay: 0-15 seconds adjustableDimension: 138*67*37mm( L/W/H )

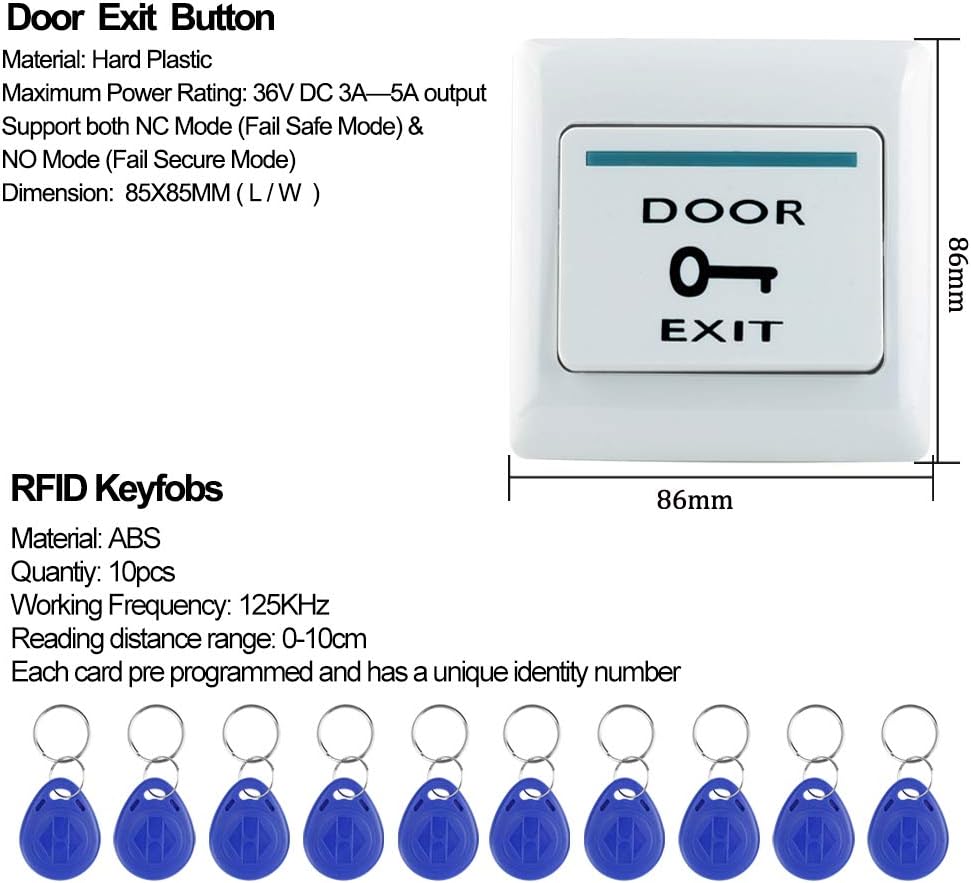

Door Exit Button

Material: Hard PlasticMaximum Power Rating: 36V DC 3A—5A outputSupport both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)

RFID Keyfobs

Working Frequency: 125KHzChip: EM4100Material: ABS plasticEach one has unique ID number on itReading Range: 0-10cmQuantity: 10pcs

Wiring Diagram

Instruction

Please connect Access controller, electric bolt lock, door exit button to the DC12V power supply, then connect the DC12V power supply to your AC Power supply.

Need to connect 4 cables of Access controller to DC12V Power supply.

12V (red cable) to DC12V

GND (black cable) to GND

NO/PUSH (yellow cable) to PUSH

COM (gray cable) to GND

Need to connect 2 cables of Electric lock to DC12V Power supply.

Connect a cable to NC

Connect a cable to GND

Need to connect 2 cables of Door exit button to DC12V Power supply.

Connect a cable to PUSH

Connect a cable to GND

[1] IP68 waterproof RFID access control keypad, suitable for both indoor and outdoor installation. Touch panel, very nice appearance. Has blue backlight, the digits can be seen in the dark.
[2] Use the Tuya Smart APP to add user, remote open the door, and view door access records. It’s very convenient! Tuya Smart APP can work with wifi and bluetooth, supports Chinese and English language.
[3] Has WG26, WG34 Wiegand input / output, can be installed an additional card reader. Has a doorbell button, can be installed an additional doorbell. Can set 01-99 seconds door opening time on the RFID Keyboard.
[4] Working with both 125KHz and 13.56MHz dual frequency. Supports 100 Fingerprints, 8000 RFID cards user capacity. Supports Tuya APP, Fingerprints, RFID Cards, Password, Remote control transmitter verification mode. Can set Management cards, very easy to program!
[5] A complete access control system kit set with NC fail safe Electric strike lock. The door will be locked when power on, open when power off. Suitable for wooden, metal door. Working with DC12V access control power supply, easy installation.
