FUSYTULY Wifi Tuya RFID Door Access Control System Kit IP68 Waterproof Access Controller Touch Keypad + 180KG Electric Magnetic Lock + K80 3A Power Supply + 15pcs 125KHz Keyfobs
£59.99
Price: £59.99
(as of Jun 10, 2025 06:10:27 UTC – Details)
Product Description
FUSYTULY Wifi Tuya RFID Door Access Control System Kit IP68 Waterproof Access Controller Touch Keypad with 180KG Electric Magnetic Lock
Pack List
A complete set of entrance guard system for wooden doors, metal doors and glass doors, which you can choose according to the type of your door.

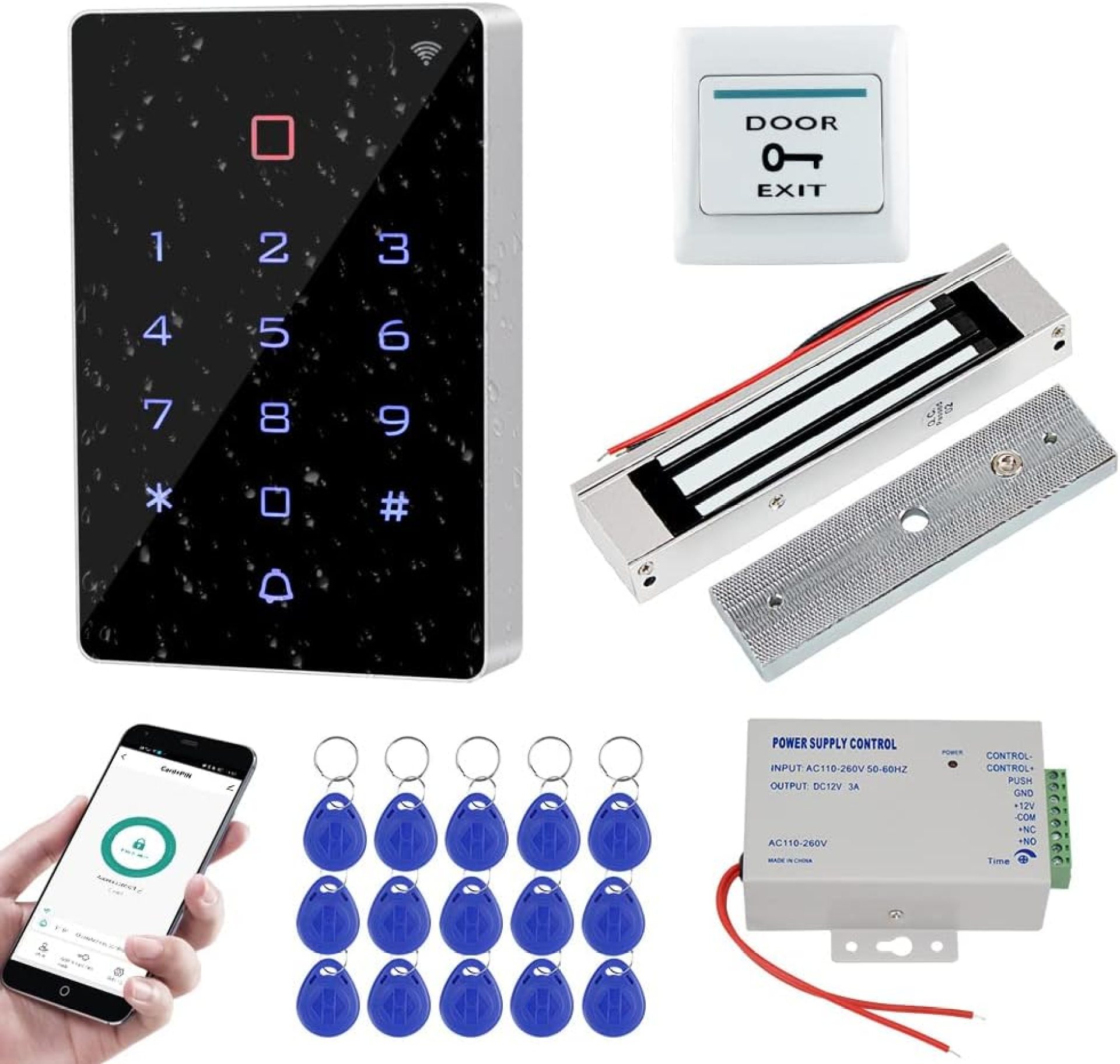

Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Door Exit button + 15pcs 125KHz Keyfobs
Tuya APP Setting Instruction
Scan QR code to download Tuya APP or Search Tuya on App store to download it.Enter *999999#73# on the access control machine to pair with the mobile phone via WiFi.Open Tuya APP to add new equipment.Select “Auto scan”, click “Searching”.Connect with available devices, click “Next”. Choose Wi-Fi and enter password, click “Next”.Connecting, Added successfully, click “Done”.Click setting, open remote unlock setting.Select user, click “+” to add user, fill in name, click next step, then click “Add” to input 6 digits code or generated code randomly, fill in code name or card name, click “Save”.Swiping one card within 60 seconds, add card successfully, then fill card name and click “Done”.Then input the related information and click “Next step”.Add code user by clicking add temporary code cyclicity, and inputting six digits code or clicking randomly generated, then input code name.Set effective time and ineffective time, click “Save”Add temporary code, click “Once”, input code name, click “Save offline code” , Done. Notice: The code valid time for 6 hours and only can be used once.Add card by clicking start add. Add ordinary user by clicking ordinary member “+”.
Multiple opening door modes
Support Tuya APP, Tuya temporary password, RFID Card, Password, RFID Card plus Password to open the door
Can add Password, RFID cards on the APP, it’s very convenient.Can open the door with Tuya APP unlocking button, or Tuya password.A periodic password can be set, and the password is valid for a certain period of time.Can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.Supports sharing password via WeChat, Email and SMS.Can view unlock records. Click reminder information to view logs.Can set Management cards, very easy to program. Don’t need to connect to computer.
Access Control Keypad
Working voltage: DC 12V ; Material: high quality ABS plastic; Panel: touch screen panel; Backlight: has blue backlight;APP name: Tuya; View unlock records: support ;User capacity: 2000 ; Working frequency: 125KHz; Card reading type: support EM ID compatible chip. Can set management card;Identification method: Tuya APP, RFID card, password, RFID card plus password ;Waterproof function: IP68 waterproof, can be installed outdoor ;Doorbell button: support wired doorbell ;Wiegand signal: WG26 / WG34 input/output ;Door opening time: 0-99 seconds ;Working temperature: -20 ° C ~ 70 ° C ;Product size: 114*71*16mm
180KG Electric Magnetic Lock
Material: Aluminum alloy shell + iron plateHolding force: 180KG/350lbsWorking Voltage: DC12VWorking Current: 380-430mASuitable for door: metal, wooden, glass doorHumidity: 0 to 95%Working Temperature: -10 to 55 Celsius degreeWorking mode: locked when power on, open when power offWaterproof: Yes. Can be install outside
Power Supply
Material: stellAC input: Standard AC100V-260V / 50-60HZDC output: DC12V/ 3 ATime delay: 0-15 seconds adjustableDimension: 140X67X33mm( L/W/H )
Door Exit Button
Material: Hard PlasticMaximum Power Rating: 36V DC 3A—5A outputSupport both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
RFID Keyfobs
Working Frequency: 125KHzChip: EM4100Material: high quality ABS plasticEach one has unique ID number on itReading Range: 0-10cmColor: BlueQuantity: 15pcs
Wiring Diagram
Instruction
Please connect Access controller, Electric Magnetic Lock, door exit button to the DC12V power supply, then connect the DC12V power supply to your AC Power supply.
Need to connect 4 cables of Access controller to DC12V Power supply.
12V (red cable) to +12V
GND (black cable) to GND
NO (yellow cable) to PUSH
COM (gray cable) to GND
Need to connect 2 cables of Electric lock to DC12V Power supply.
Connect Red cable to NC
Connect Black cable to COM
Need to connect 2 cables of Door exit button to DC12V Power supply.
Connect a cable to PUSH
Connect a cable to GND
[1] IP68 Waterproof access control keypad, can be installed outdoor. Made of high quality material, Touch key-press, very beautiful appearance. Working with DC12V voltage.
[2] Supports WiFi Tuya. You can use the Tuya APP to add users, open the door, and view unlock records. It’s very convenient! Also, You can set 01-99 seconds door opening time on the device.
[3] Working with 125KHz frequency. Supports 2000 user capacity. Supports Tuya APP, RFID card, Password, RFID card plus Password verification mode. Can set Management card, Very easy to program!
[4] Has WG26, WG34 Wiegand interface, can be connected to an additional card reader. Has a doorbell button, can be connected to an additional doorbell. Has blue backlight, the digits can be seen in the dark.
[5] High quality Electric magnetic lock, holding force with 180kg/350lbs, the door will be locked when power on, open when power off. Suitable for wooden, metal, glass door. Can set 0-15 seconds door opening time on the the DC12V 3A power supply controller.
11 reviews for FUSYTULY Wifi Tuya RFID Door Access Control System Kit IP68 Waterproof Access Controller Touch Keypad + 180KG Electric Magnetic Lock + K80 3A Power Supply + 15pcs 125KHz Keyfobs
Add a review
Related Products
![Yale Conexis L2 Smart Door Lock [NO Subscription Required] Remote Access from Anywhere, Anytime, No Key Needed, Works with Alexa, Google Assistant and Philips Hue – Black](https://wp.fifu.app/buysmarthq.com/aHR0cHM6Ly9tLm1lZGlhLWFtYXpvbi5jb20vaW1hZ2VzL0kvNTF6VVhaallHckwuX0FDX1NMMTUwMF8uanBn/3f2e81016208/yale-conexis-l2-smart-door-lock-no-subscription-required-remote-access-from-anywhere-anytime-no-key-needed-works-with-alexa-google-assistant-and-philips-hue-black.webp?w=300&h=300&c=0&p=3069)
£59.99
BAAM –
Difficult Installation
Another Amazon purchase of something that looks the part, has a great description but doesn’t actually work properly.I have hired a fully qualified electrician, he’s a smart guy and familiar with opening systems. Not even he can’t get this device working, not yet anyway.It’s costing me by the hour and I’m loathed to continue saying ‘yes’ to his hourly rate as each hour passes
Craig L. –
Wiring diagram.
Cheap, but helpful.I purchased a different door strike.Wiring for me, as pictured.Lock intoNO and COM either wayCode box intoRed +12VBlack and Purple GNDBlue in PUSHMy 12v power supply intoPositiv into +12VNegative into GNDButton intoCOM into GNDL1 into PUSHNow Installation.No idea how to connect tuya app at all, no instructions or links at all.
marcus pawley –
Dont use the wiring diagram!
The system on the whole works but the instructions are poor, the wiring is: push= blue from keypad and one side of the door open switch,GND=black&purple from keypad and other side of door open switch,+12V= red from keypad,-COM= black (mag lock),+NC=red (mag lock). Also, when you code the RFID you need to turn on the search first then SWIPE the tag across dont leave it there as it wont always read properly. Other than that it does work and the app is relatively easy to use
Alex –
Frustrating and a bit dodgy
Iâve had this wired up professionally. The touch pad doesnât work, and the Access Power Unit glitches I.e. when you press the exit button a couple of times, the lock releases, then the unit dies. Must be a loose connection internally because if you give it a tap, it comes back to life, but rinse and repeat thereafter. All indications that it is a poorly made product. Waste of money
Amazon Customer –
Does not work
I have followed the instructions as per the documentation and the keypad is unable to ope the lock. I have been on it for more than 2 days. Still no luck
Bruce A –
Not bad but does need some DIY knowledge and persistance
I didn’t buy mine here but found this page looking for good instructions. What I found here allowed me to get it working with tags, password and fingerprint. So far, pairing with the app over wifi has defeated me. I’m not sure how to set the panel into pairing mode, AFAIK, it’s *999999#74# but * gives me a doobell sound and it doesn’t seem to go into pairing. Any suggestions welcome.It seems pretty good for the money but it will require persistence the install. I recommend some silicone sealant as I would rely on the water resistance
Seb414 –
Works if you follow the wiring diagram.
Rubbish WiFi and no easy way to add an aerial.
Dan –
Have 2 of these both wired to manual and both donât open lock, have used before and had no problems
Not sure whatâs up with the unit as all seems to work other than the lock retracting
enrico a. –
Ho dovuto restituire…. non funzionava.
magus75 –
Funcionamiento incorrecto.Wifi muy malo casi sin alcance
Maxime –
Le prix justifie la qualité.Le wifi du clavier a fonctionné 2 jours.L’alimentation a grillée après 10 jours.Ca m’apprendra à acheter du pas cher
