Solsop Network Cable Tester RJ45 Crimp Tool Pass Through Cat5 Cat5e Cat6 Crimping Tool Kit, 50PCS Pass Through Connectors, Mini Wire Stripper, Wire Cutter plier
Original price was: £31.99.£29.99Current price is: £29.99.
Price: £31.99 - £29.99
(as of Jul 04, 2025 01:57:33 UTC – Details)
Product Description
ABOUT SOLSOP TOOLS
SOLSOP Tools’ mission is to provide products with performance, durability, and precision, and then ensure that every product delivers reliable, quality at an affordable value.
Package included: RJ45 Pass Through Crimp Tool Network Cable Tester 50PCS RJ45 Pass Through CAT6 Connectors 50PCS Cover Boots Mini Wire Stipper Wire Cutter Plier A Set Of Spare Blade + User Manual
Solsop Professional Pass Through RJ45 Crimp Tool Kit for both Pass through and standard RJ-45 Connectors
Long lasting RJ45 Crimper tool cuts, strips and crimps Cat5, Cat5e and CAT6/6A cable using Pass Through RJ45 connectors.Crimps 8 position modular connectors – RJ45 Connector Pass Through.Wire stripper, crimper, and cutter all-in-one tool for STP/UTP paired-conductor data cables.Trims flush to end face of connector eliminating unintended contact between conductorsWiring diagram on the tool helps eliminate rework and wasted materials.
Pass Through Technology Significantly reduces prep work time Make a cable more easy and quick Cuts off the excess simultaneously Has a 100% success rate

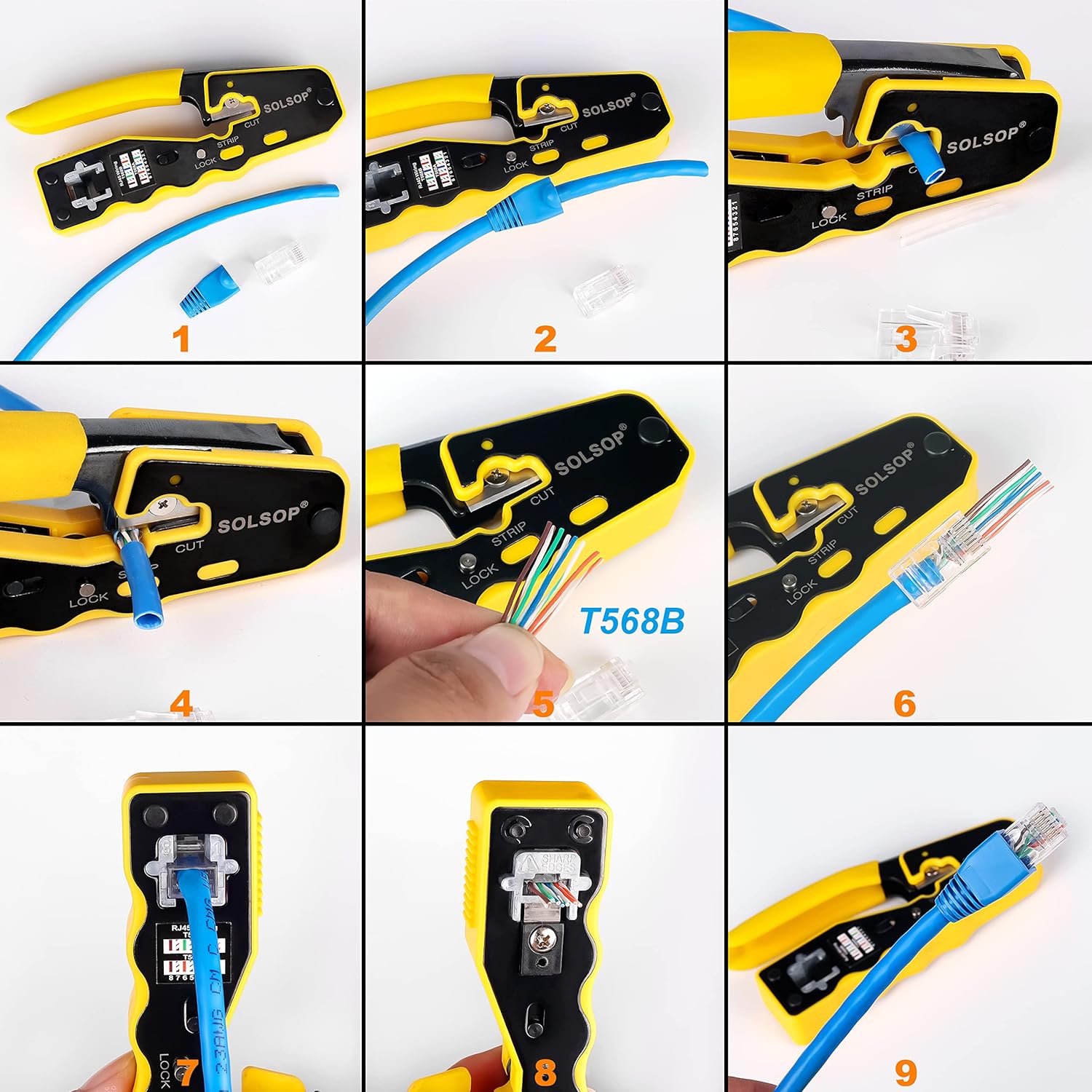

How To Make a RJ45 Ethernet Cable Connector
Put the cable into the stripping port of the pass through ethernet crimper.Hold the rj45 ethernet crimper and rotate the cable on 360 degrees to strip the cable. (Note: Don’t crimp too much tightly to avoid damaging the internal cable).Line up the eight colors of the cable according to T568A standard or T568B- (T568B Standard used in home more widely).After line up the eight colors of the cable, you should cut the wires neatly through the cutting port blade of the rj45 ethernet crimper.Please insert the sequential cable into the end of the crystal connector. When inserting the cable into the crystal connector, hold the cable tightly to avoid the wrong sequence.Insert the network cable with crystal connector into the 8P crimping port.Squeeze the handle hard and release then, pull out the crystal connector.The rj45 Ethernet Cable connector is completed.
Sharp Wire Cutter Pliers
The wire cutters are super sharp and easy to use, cuts through wire like butter.Suitable for copper / aluminum and soft wire up to 12AWG (∅2 mm).
Wire Stripper for UTP/STP Strips
Used for connecting network or telephone cable into face plates and network modules.This tool pushes in the wire without any difficulty.Easy and safe to use, punch down wires on modular connectors.
LAN/Network/Phone Continuity Tester
The LED lights will flash in rotation if all the wires are properly connected, otherwise the corresponding light will not flash.Namely,The light s of both the main tester and remote unit will light up sequentially from 1 to 8 or G. G light – Is for shiled cable tester.
Professional RJ45 Crimp Tool Kit – Combines cable cutting, stripping and crimping functions all in one. Even a novice can complete the network installation work like a professional as per use’s manual included
Pass Through Technology – Use both Pass through RJ45 crimper and Pass through Connectors has 100% success rate, and significantly reduces prep work time, make a network cable more easy
Cable Tester – Work with cable with RJ45/RJ11/RJ12 Connector (9V battery not included); Use’s manual has a details explain about how to use this cable tester

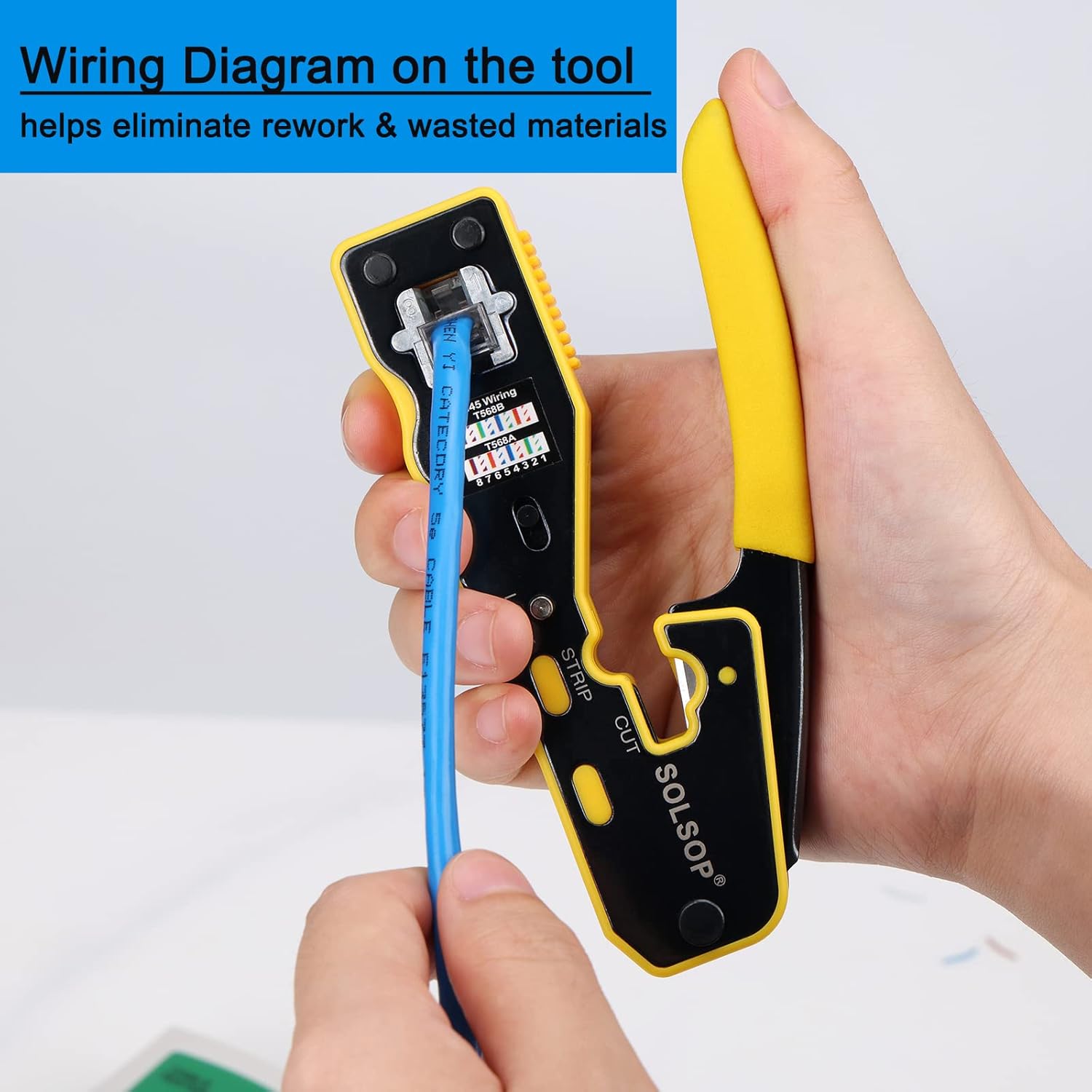

Wiring diagram on the ethernet crimper helps eliminate rework and wasted materials
What You Get – User’s manual, RJ45 pass though crimp tool, network cable tester, 50PCS pass through cat6 connectors, 50PCS cover boots, a set of spare blades, mini cable stripper, wire cutter plier
13 reviews for Solsop Network Cable Tester RJ45 Crimp Tool Pass Through Cat5 Cat5e Cat6 Crimping Tool Kit, 50PCS Pass Through Connectors, Mini Wire Stripper, Wire Cutter plier
Add a review
Related Products
Original price was: £31.99.£29.99Current price is: £29.99.
Mr A.C Wheway –
Crimping and terminate
The tool works well and was recently reduced in priceIt comes with spare blade for the cutter which is a real plus as long as I donât loose them
John Moxley –
Great Value easy to use
I had never done cat6 wiring before, and I am terrible hand to eye coordination. So came at this as a complete novice. But the tools worked well, it came with loads of adapters. The wiring diagram was really useful, I had to do 7 ends, 1 I accidently wired upside down, and another for some reason hadn’t picked up the 7th wire, the tester told me exactly the problem, and I sorted both quickly. Takes about 2-3 mins to prepare and unwind the wires, 2-3 mins to feed in the wires, and then seconds to crimp, I would suggest giving a minimum of 5cm of wire, and making sure each one is as straight as possible first, when threading the wire make note of the orientation of the adapter, and ensure the wires are neighbouring it’s easy to accidently miss a place (B is the wiring pattern that is standard).
Thomas Osborn –
Good kit for DIYâer
Crimping tool works perfectSide cutters are sharp and cut wellI had trouble with the push though connectors but got it to work perfectly with some trial and error.
Russell –
Great Value for money
Works as should, used it a few times and only issue is it doesn’t always cut of the ends when crimping every time. A Second crimp usually does the trip
Brian Halls –
Quick and easy
A handy tool to make wiring up RJ45 intranet connectors easy with no wastage when compared with the regular type RJ45 connectors. The RJ45’s supplied are for standard wiring so great to use around the home or in a small office.
Col P –
Great kit
Great kit, wouldnât mind a kit bag for it though
Ben Eastwood –
Works. If I was using it daily, Iâd want better quality . Works fine for DIY. Would recommend
Ok
shaun –
great
read the instructions , good pair of glasses for the wiring , and order some quality rj45 pass through connectors seperately , the ones provided dont make good connections, but overall gets the job done. would recommend
AbuWaleed –
٠٠تاز Ùع٠ÙÙ
André D’Astous –
L’outil de sertissage fonctionne bien. Le compartiment à piles du testeur de câble réseau est très difficille à ouvrir et le plastique est fragile.
kSec –
Das Tool ist für seinen Preis ganz okay. Wenn man gelegentlich ein paar LAN Kabel bastelt dann okay. Für etwas anspruchsvollerens würde ich jedoch ein besseres Tool wählen. Die Zange, und dass mitgelieferte Messgerät sind okay. Die RJ45 Stecker jedoch nur minderwertig.
Ali Ghanim –
Among the essential tools in network
R van Beek –
It’s been a while since I made cat5 connections. It was always a struggle to get them right, and you had to have multiple tools. This all in on tool is great. Cut, strip and pull the wire through the connector. Then squeeze the handle and your done. Didn’t have the problem others had that it didn’t cut the wires.Added bonus: the little sticker that shows the wiring diagram.
