Thlevel Solar Panel Cable to DC 8mm / 5.5×2.1mm / 4.0×1.7mm Solars Plug and Socket to Adapter Waterproof 1.8 Meter 16AWG Converter for Connecting Generators
Original price was: £9.99.£8.99Current price is: £8.99.
Price: £9.99 - £8.99
(as of Jun 13, 2025 04:00:23 UTC – Details)

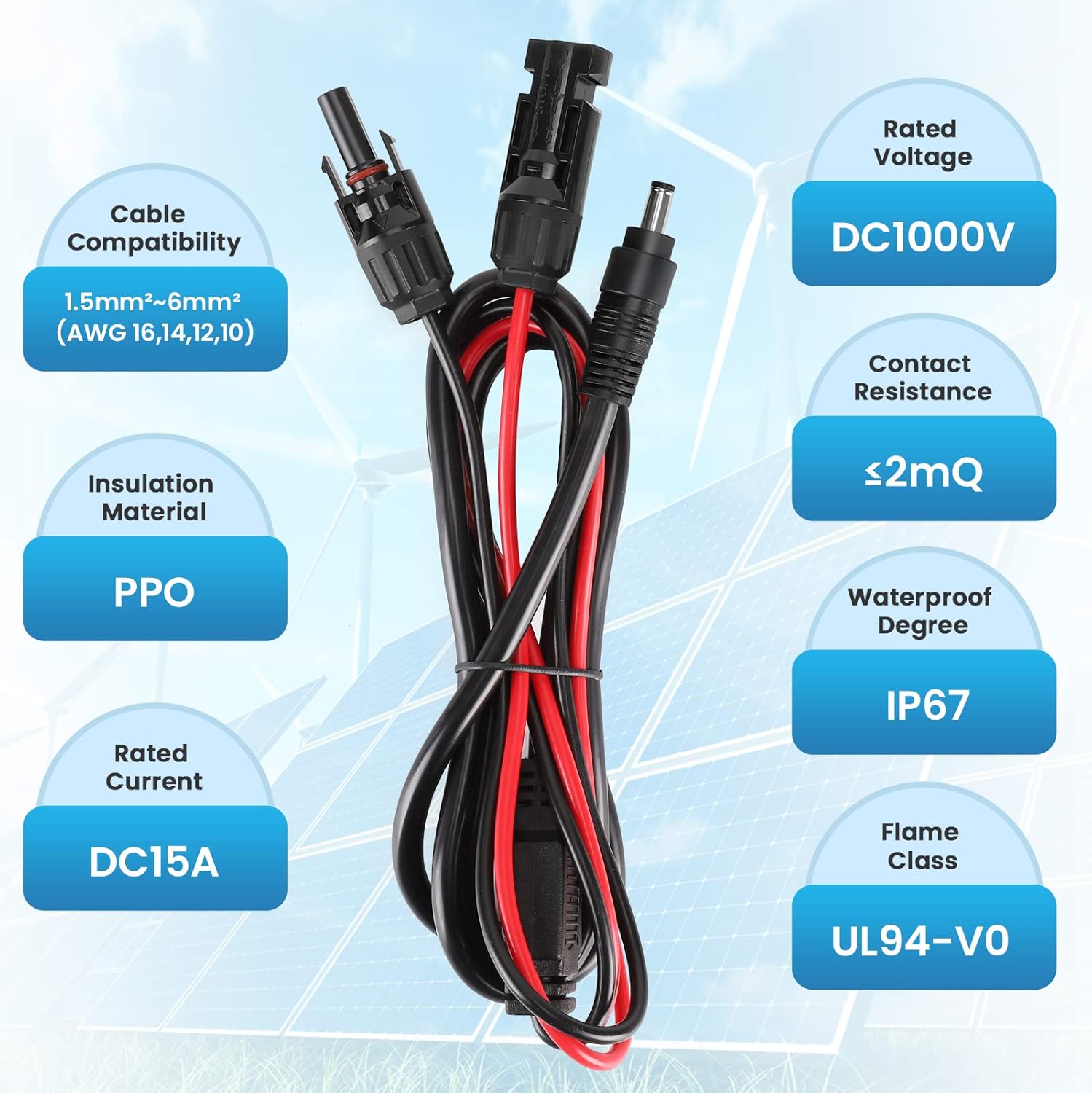

Product Specifications:
Solar Connector to DC 8mm / 5.5×2.1mm / 4.0×1.7mm Connector Solar Charge Cable
Product Length: 1.8Meter/70.87in.
Cable Compatibility: 1.5mm²~6mm² (AWG 16,14,12,10)
Insulation Material: PPO
Rated Current: DC 15A
Rated Voltage: DC 1000V
Contact Resistance: ≤2mQ
Waterproof Degree: IP67
Flame Class: UL94-V0
How to use:
1. Place solar panels in the sun
2. Connect the solar male/female connector of this cable to the male/connector of the solar panel
3. Insert the DC8.0mm / 5.5×2.1mm / 4.0×1.7mm interface into the input port of the portable power station.
Package:
1*DC 8mm / 5.5×2.1mm / 4.0×1.7mm solar charge cable
Wide Applications: Solar plug to DC 8mm adapter cable, compatible with all brands of solar panels with solar plugs, as well as a DC 8mm / 5.5×2.1mm / 4.0×1.7mm plug compatible with solar charging generators.
Made of 16 &14AWG Wire , Thick and Durable: The main wire of the solar photovoltaic wire is heavy duty 16AWG copper wire, and the branch wire is 14AWG copper wire, which is very durable.
Travel with Ease: 1.8 meter long solar to DC extension cable, longer connection distance, Convenient for connecting to the solar panel and adjusting the best position when charging.
IP67 Waterproof: Waterproof solar male and female cables are specially designed for harsh outdoor environments. Each solar connector is equipped with a waterproof rubber ring, which is weatherproof and ideal for outings.

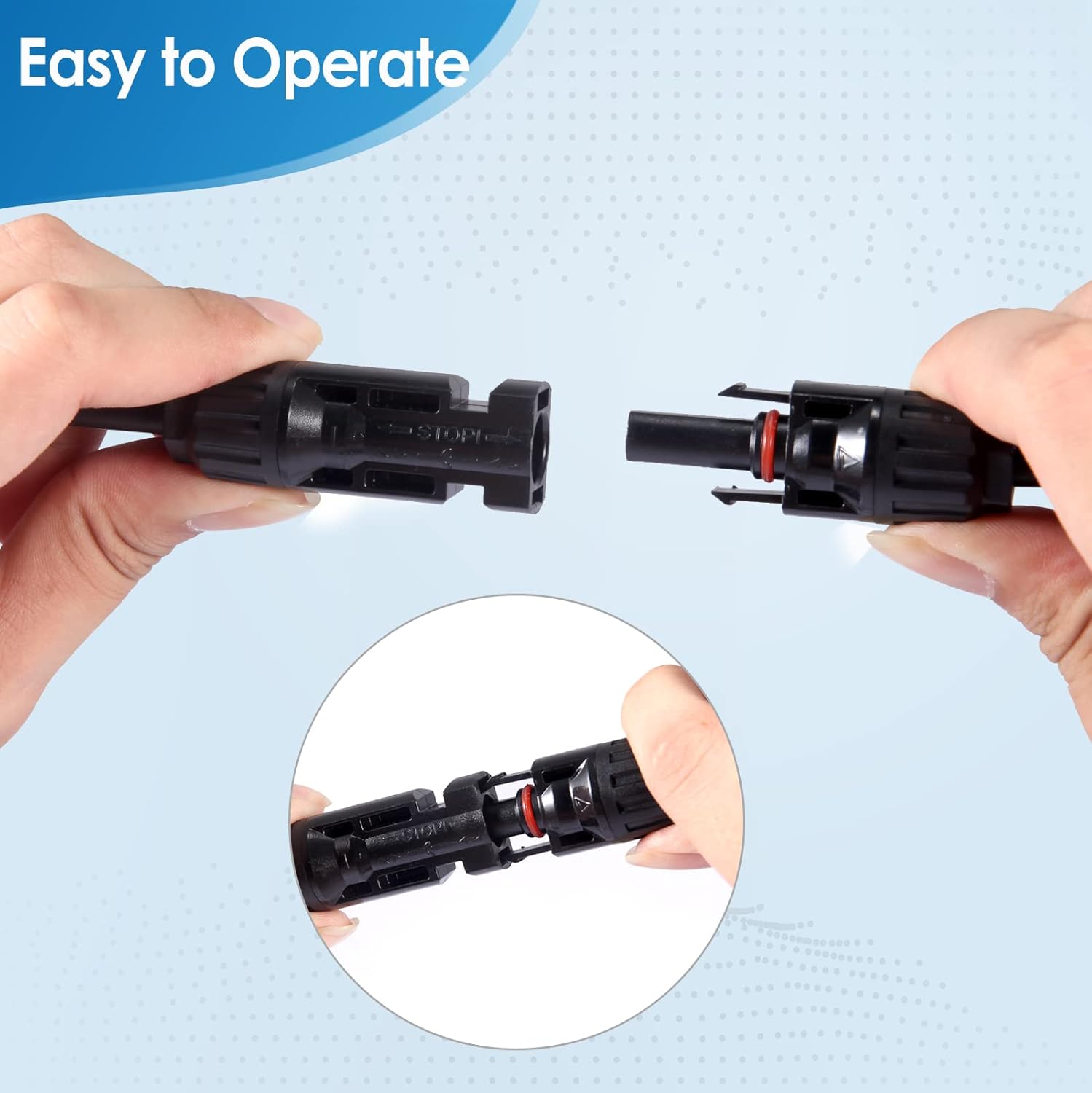

Easy to Use: This DC solar plug and socket cable is designed to connect the plug to the negative pole and the socket to the positive pole.
13 reviews for Thlevel Solar Panel Cable to DC 8mm / 5.5×2.1mm / 4.0×1.7mm Solars Plug and Socket to Adapter Waterproof 1.8 Meter 16AWG Converter for Connecting Generators
Add a review
Related Products
![[Apple MFi Certified] Apple Lightning to HDMI Adapter for iPhone to TV, 1080P Digital AV Adapter Sync Screen Connector Cable Compatible for iPhone 14 13 12 11 XS XR X 8 iPad to HDTV Projector Monitor](https://i0.wp.com/m.media-amazon.com/images/I/51I64OlDbGL._AC_SL1500_.jpg?w=300&resize=300,300&ssl=1)
Original price was: £9.99.£8.99Current price is: £8.99.
Michelle Ball –
Product
What expected excellent seller
Susan jeffs –
Perfect connections
Perfect for solar to powerbank extension
Customer –
May Require and Extra Adapter for Jackery
This power lead comes in a plastic bag along with a couple of adapters.I am using it with a Jackery Explorer 240 v2 and I needed an extra couple of adapters in order to use it. Once I had that further adapter, this worked well with a 20W panel I have.It isn’t the cheapest, but it is cheaper than anything directly from Jackery!
Richard –
Works fine
Spot on. Works a charm
Izzy –
Works well
Works as it should. I would have liked the wires to have been longer. But I got what I paid for. So can’t really grumble.ð
adam L. –
Adapter snapped easilyâ¦
Worked fine and the cable is solid but the end adapter/metal bit is very flimsy and so bent really easily and eventually snapped.
Sergejs Malinovskis –
Did not work for me.
Using Bluetti ac50s this did not work for me to connect 5.5mm dc solar panel output port using this cable to power station 8mm input, or in parallel with other solar panel to the station. So using my cable from 5,5mm DC solar panel to 8mm dc power station all working fine. Then 5,5mm DC solar panel output using this cable to MC4 connected to another cable (proved to work) MC4 to 8mm DC power station charging port – did not work. If I use MC4 parallel splitter cables and connect another solar panel result is the same. No power. So to me it is clear that something wrong with this cable. One of he mc4 connectors did not click in as well. Will return and try other cable.
Adam –
Solar panel cable
It works fine connecting Bluetti solar panel to my Jackery500.The only reason I gave 4* because the even though the pictures on the listing are showing red to +, black to -, the actual black plugs marked opposite. After trying it, it works but gave me a bit of concern to start with.
bruno –
Tutto come descrizione, funzionano bene e di buona qualitÃ
Bernardo Capucho –
Funciona perfeitamente.
Raynald CLAUDINE –
Bonne qualité
Kevin –
Der 8mm Stecker ist leider ein wenig zu dick ummantelt für das Loch in meiner Wand, so musste ich das Loch erweitern, was ich ihm aber nicht als minus anrechne. Das Kabel wirkt sehr robust und kommt dem Standard nach.
Fred –
Rien à dire, fait le job sans perte de puissance.
