Wengart Room Thermostats WG809,7-day Programmable LCD Display Touch Screen 230V 3A for Radiant Floor Heating White

Price: £19.19
(as of Jun 11, 2025 05:17:47 UTC – Details)

Product Description

Temperature controller

Programmable room thermostat

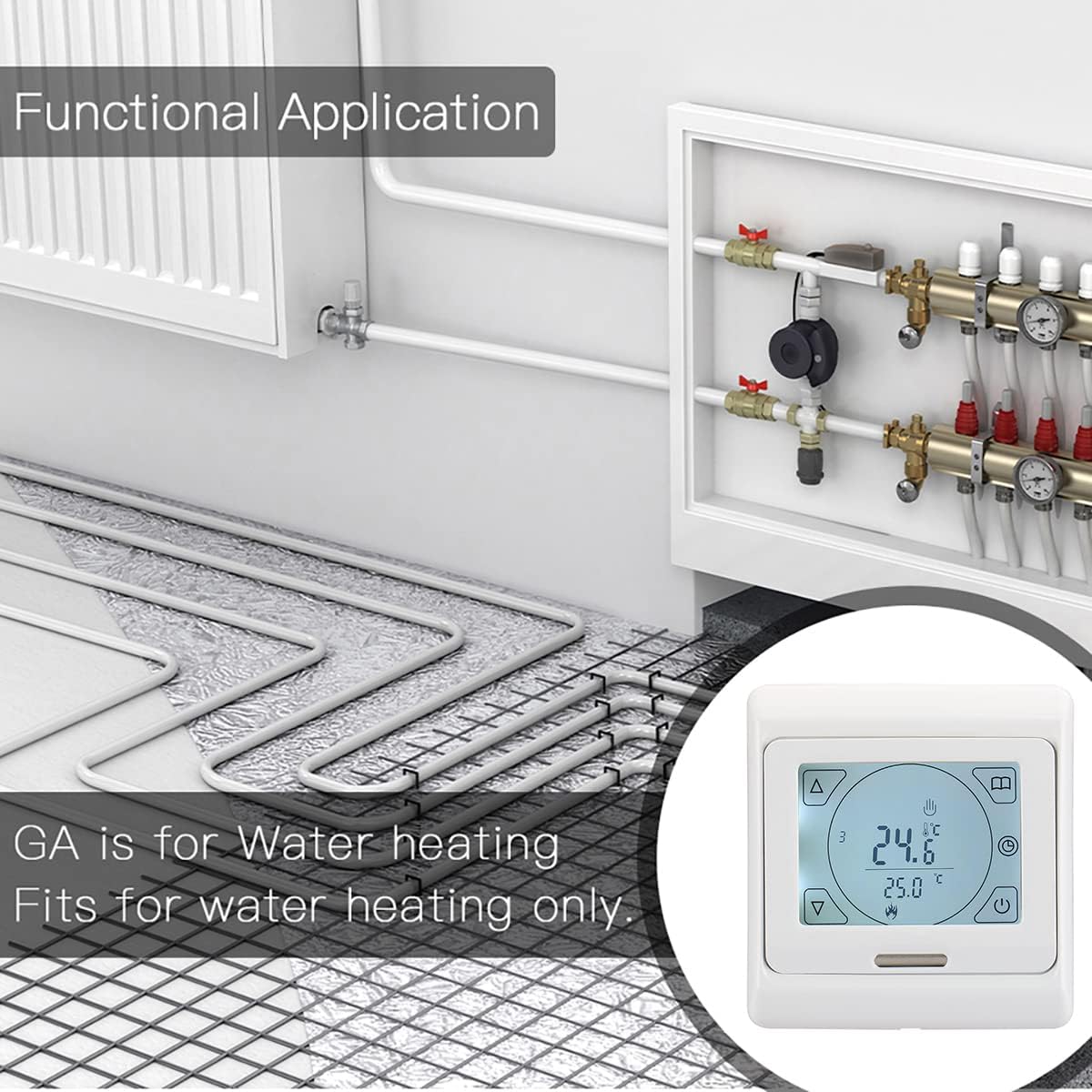

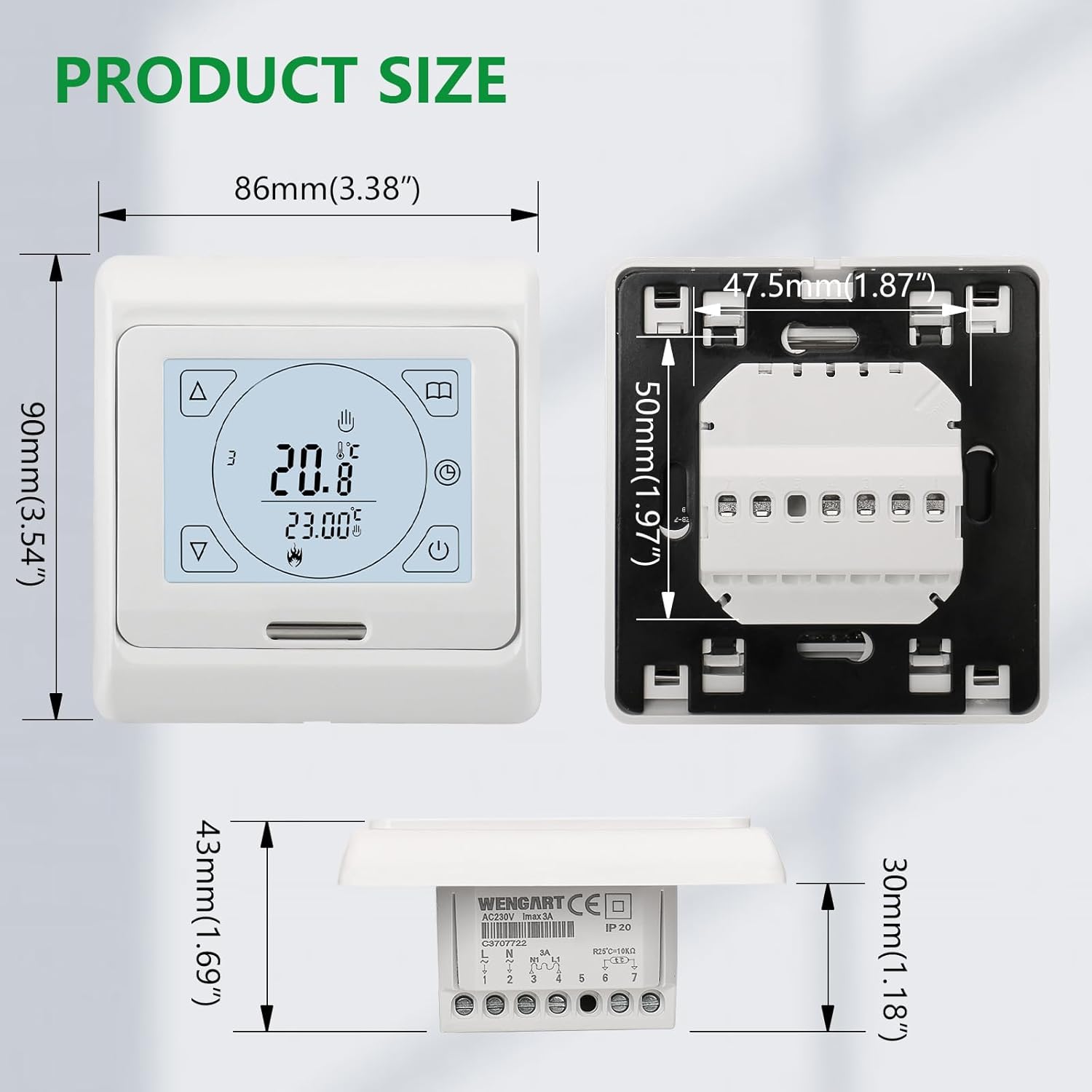

Wengart touch screen thermostat is a high-precision, intelligent floor heating and heating control device, embedded installation, compatible with 86/60 European-style dark box, used for water floor heating system control. Through 0.1℃ precise temperature measurement, weekly programming function and intelligent temperature control algorithm, it can achieve efficient energy saving and comfortable experience.

0.1℃ high-precision measurement, support temperature calibration, ensure that the actual room temperature is consistent with the display.

Temperature range 5-90℃, suitable for different heating needs.

Weekly programming function: 6 time periods can be set on weekdays, and 2 time periods can be set on weekends, which can flexibly match the daily routine.

Manual/programming mode: free switching, support temporary adjustment or long-term energy-saving operation.

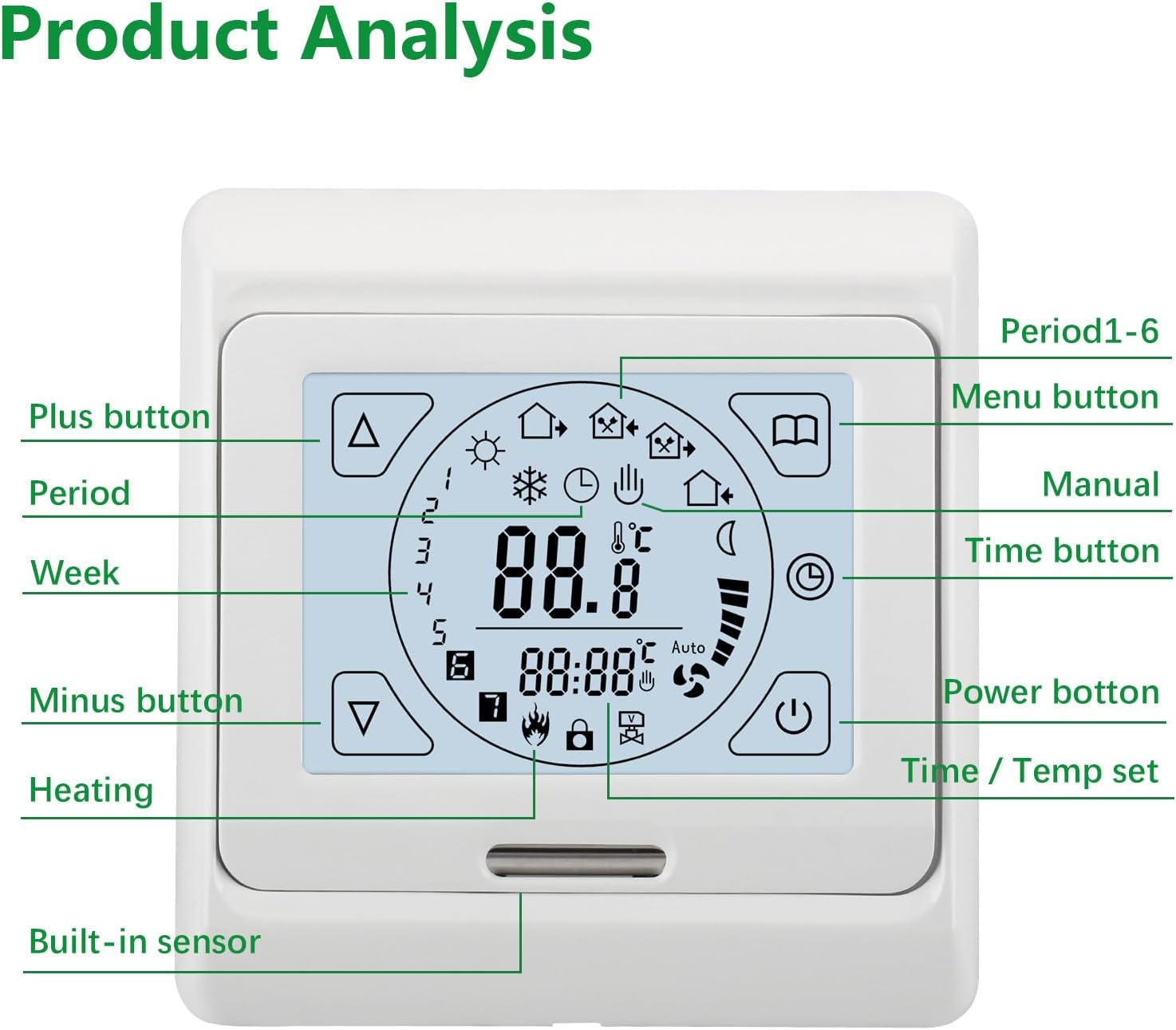

LCD touch screen: clear display of real-time temperature, set temperature and operating status.

White backlight: automatically lights up during operation, and turns off without operation for 30 seconds, which is convenient for night use.

Key lock: prevent children from accidentally touching and ensure the safety of settings.

Anti-freeze protection: automatically start heating when the room temperature is ≤5℃ to prevent pipe freezing and cracking.

Start temperature difference adjustment (adjustable from 0.5 to 10°C): avoid frequent start and stop, and extend the life of the equipment.

Power-off memory function: automatically restore the original settings after an unexpected power outage, without repeated configuration.

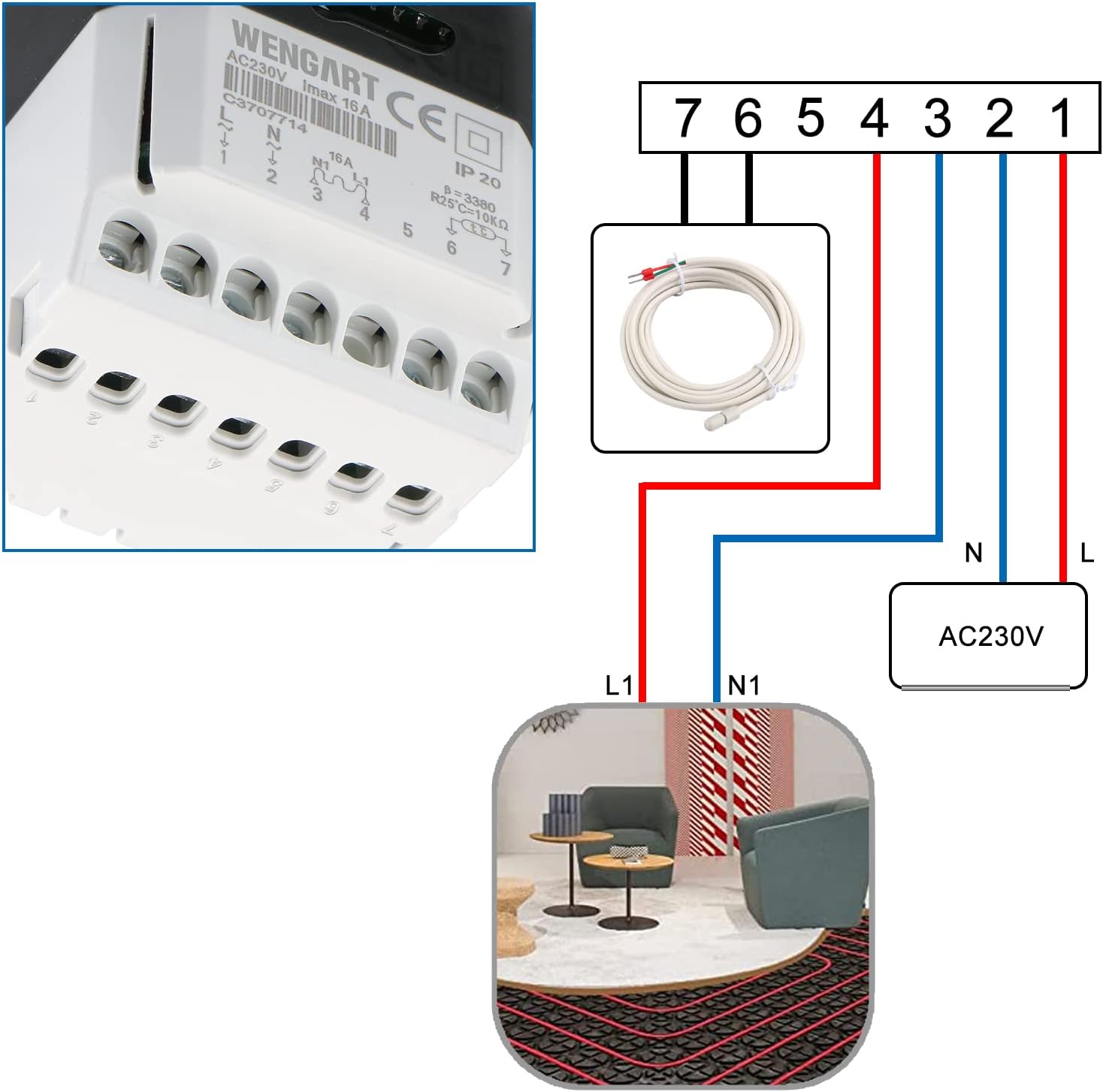

AC230V 3A output: compatible with electric heating actuators, electric valves and other equipment.

Through touch interaction + intelligent programming, precise temperature control and energy optimization are achieved, taking into account ease of use, safety and energy saving, and it is an ideal control terminal for modern heating systems.

Power Supply Voltage AC230V±10% 50/60Hz Power Consumption <2W Setting Range 5～35℃(can adjust to 35-90℃） Switch Differential 0.5～10℃ adjustable (factory setting±1℃) Ambient Temperature -5～50℃ Temperature control accuracy ±0.5℃ Measured Range -9.9～99.9℃ Inside Sensor NTC B=3380 10k @25℃ Protective Houseing IP20 Housing Material Anti-flammable PC Package Content 1 x Thermostat,2 x Screws,1 x Manual

This programmable floor heating thermostat is compatible with water floor heating systems, with a measurement accuracy of 0.1°C, embedded installation, suitable for 86 European cassettes,Output AC230V 3A, giving you the control you need to save money and energy and maximize comfort.
The room thermostat adopts touch buttons, and the temperature range can be set to 5-90°C, and the manual mode or programming mode can be freely selected according to different applications.

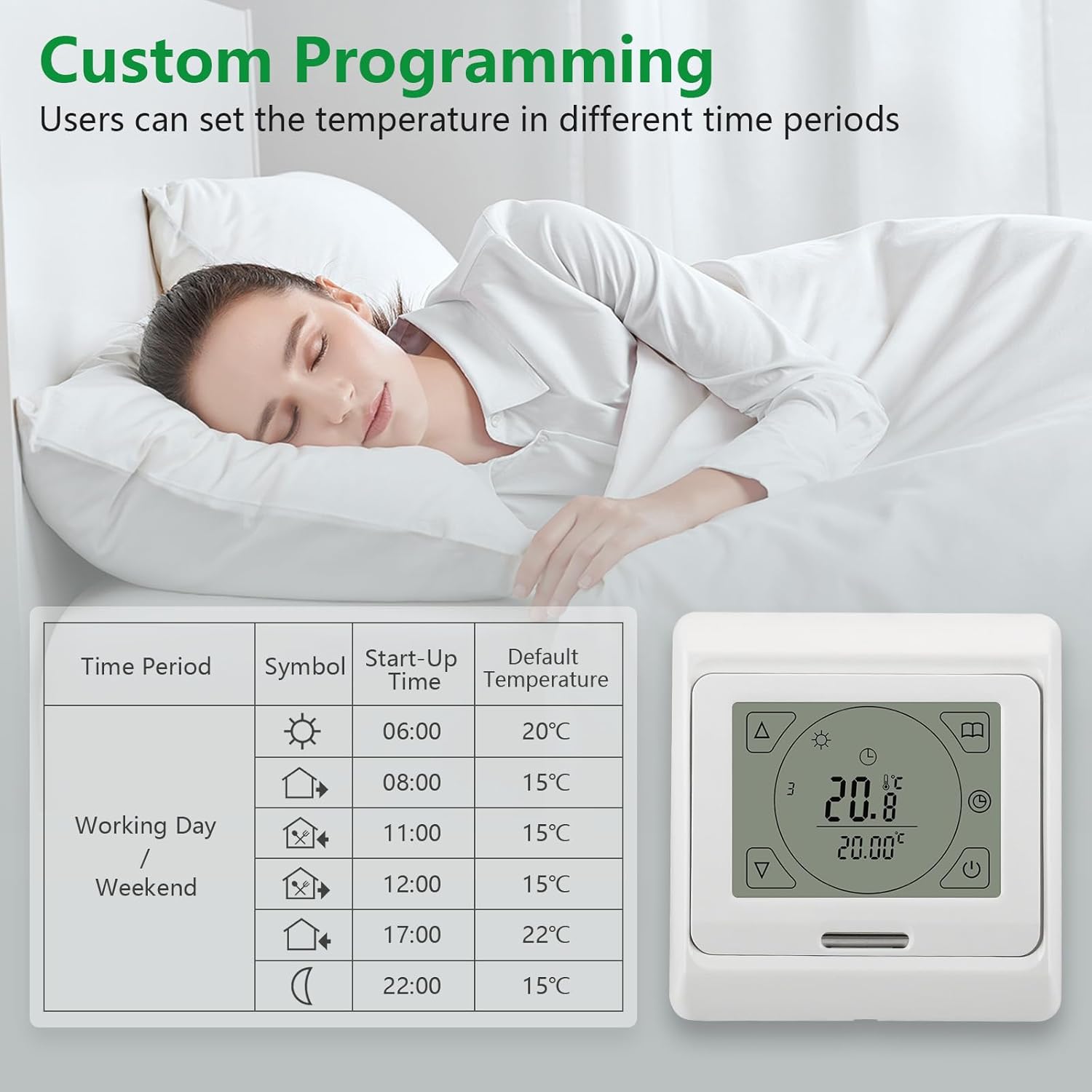

The room thermostat has a one-week programming function, which can automatically switch to the temperature you need within the set time. There are 6 fixed time periods on working days and 2 fixed time periods on rest days. At the same time, you can freely choose 5 days, 6 days or 7 days. You can set the time and corresponding temperature arbitrarily.
The room thermostat has a temperature calibration function. When the measured temperature and the actual temperature of the room have a large difference, an accurate calibration of 0.1°C can be performed.
The digital thermostat has a large LCD display, which displays the room temperature, set temperature and current heating status in real time, making it easy to understand the current status of the thermostat.
The room thermostat can freely choose built-in sensor or external sensor, when using external sensor, it is suitable for 3950, 10K=25°C sensor
The room thermostat has a white backlight, which lights up when the thermostat is operated, and automatically turns off after 30 seconds without any button operation, which is convenient for setting the thermostat in a dark environment.
The room thermostat has a power-off memory setting parameter function, and the information can be saved for a long time in the power-off state after the parameter setting.
The room thermostat can lock the buttons. After the lock takes effect, all the buttons will not work to prevent children from accidentally touching them.
The room thermostat has an anti-freezing function. In the off state, if the measured indoor temperature is lower than 5°C, it will automatically turn on the heating to prevent the water pipe from freezing.
