EMAX ECOII 2004 2000KV 4-6S Brushless Motor for RC FPV Racing Quadcopter Drone

Price: £21.99
(as of Jun 27, 2025 23:42:20 UTC – Details)

EMAX ECOII 2004 2000KV 4-6S Brushless Motor for RC FPV Racing Quadcopter Drone

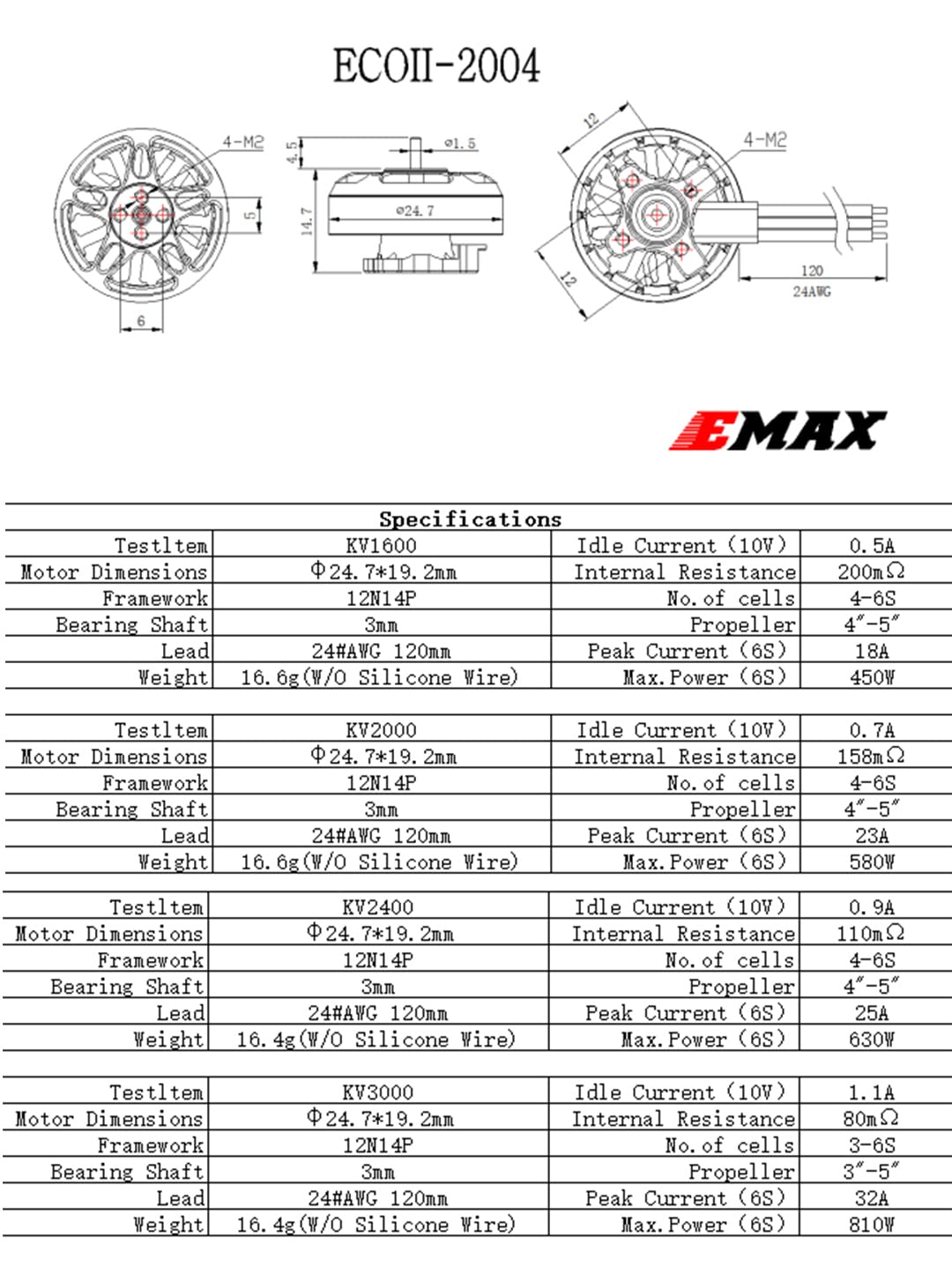

Specification:
Item: EMAX ECOII-2004 2000KV Brushless Motor
Motor Dimensions: φ24.7*19.2mm
Framework: 12N14P
Lead: 24#AWG 120mm
Bearing Shaft: 3mm
Idle Current(10V): 0.7A
Internal Resistance: 158mΩ
No. of cells: 4-6S
Propeller: 4 “-5”
Peak Current(6S): 23A
Max.Power(6S): 580W
Weight: 16.6g (W/O Silicone Wire)

Package includes (for 1 unit of Motor):
1 x Emax ECOII 2004 2000KV Brushless Motor
5 x M2 * 6 Screw
5 x M2 * 7.5 Screw
3 x M2 * 8.5 Screw
1 x Washer and Screw for shaft
【Compatible Drone】The EMAX ECOII 2004 2000KV brushless motors are customised for 4-6S Brushless micro drone. With a more rounded design paired with thicker reinforcements, these motors are robust and extremely durable.
【New Design】A brand new design with fully mirror-polished finish that shines and glistens with even the smallest hint of light.
【Weight and Size】Motor Dimensions: φ24.7*19.2mm; Framework: 12N14P; Bearing Shaft: 3mm; Lead: 24#AWG 120mm; Weight: 16.6g(W/O Silicone Wire).
【Specification】Idle Current(10V): 0.7A; Peak Current(6S): 23A; Max.Power(6S): 580W; Internal Resistance: 158mΩ; No.of cells: 4-6S; Propeller: 4″-5″.
【Package Contents】1 x Emax ECOII 2004 2000KV Brushless Motors, 5 x M2 * 6 Screw, 5 x M2 * 7.5 Screw, 3 x M2 * 8.5 Screw, 1 x Washer and Screw for shaft.
