VGOL Tractor Windshield Wiper Button Switch 245911C1 3223052R2 Compatible with Case Compatible with IHC

Price: £12.49
(as of Sep 03, 2025 04:06:24 UTC – Details)

Product Description

Item Specifications

OEM:245911C1, 3223052R2

Pin count:6

Shell material:Plastic

Size:51x50x26mm

Package

1x Button Switch

OEM: 245911C1, 3223052R2. It is compatible with Case XL series, Magnum, 4210, 4220, 4230, 4240, and compatible with IHC.

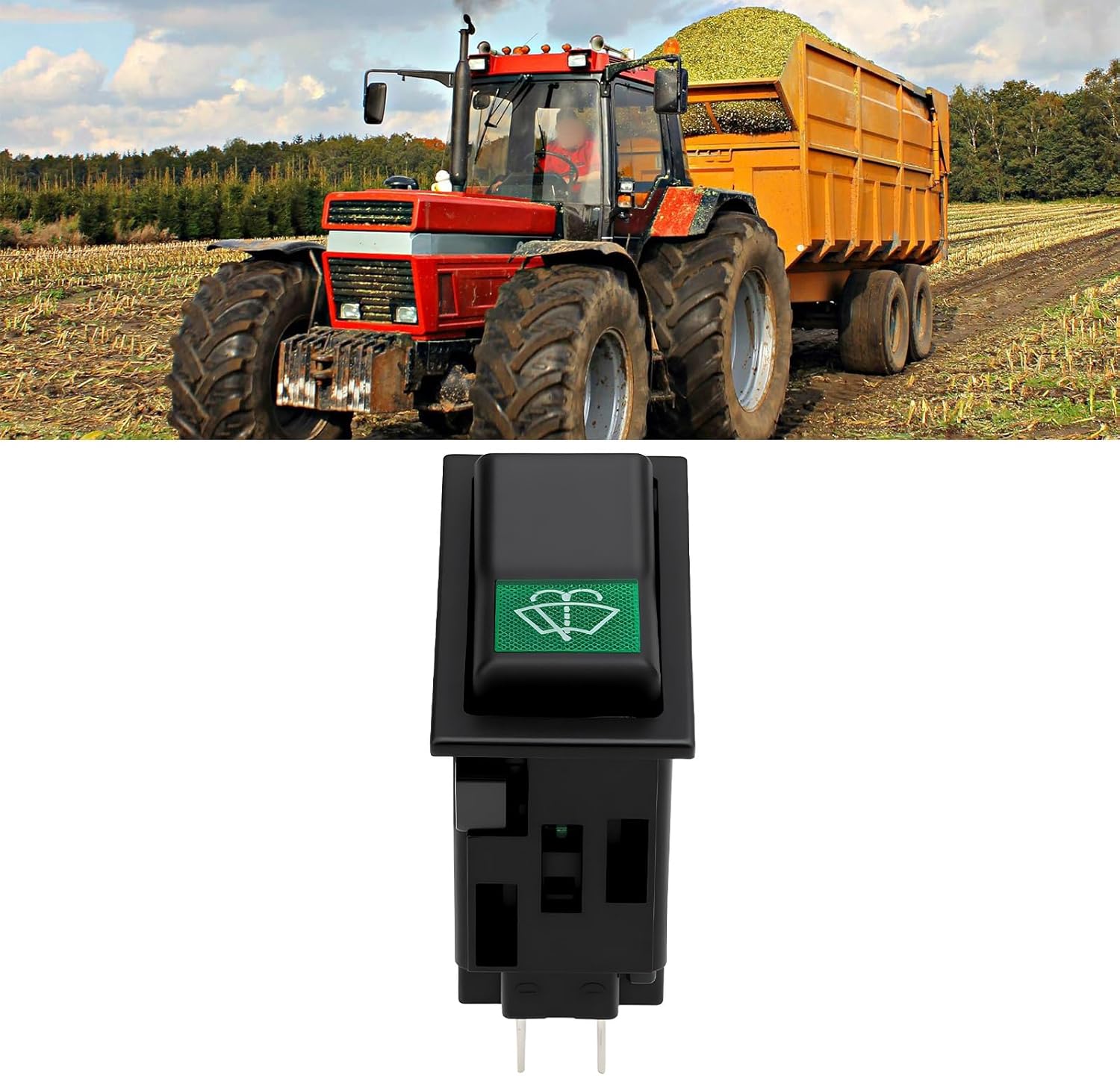

This product is a wiper control switch commonly found on older tractors or combine harvesters for agricultural machinery, used to control the on/off and running direction of wipers.

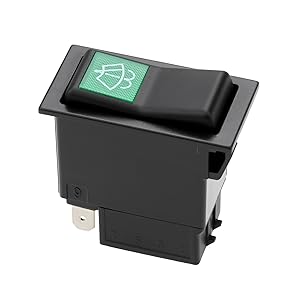

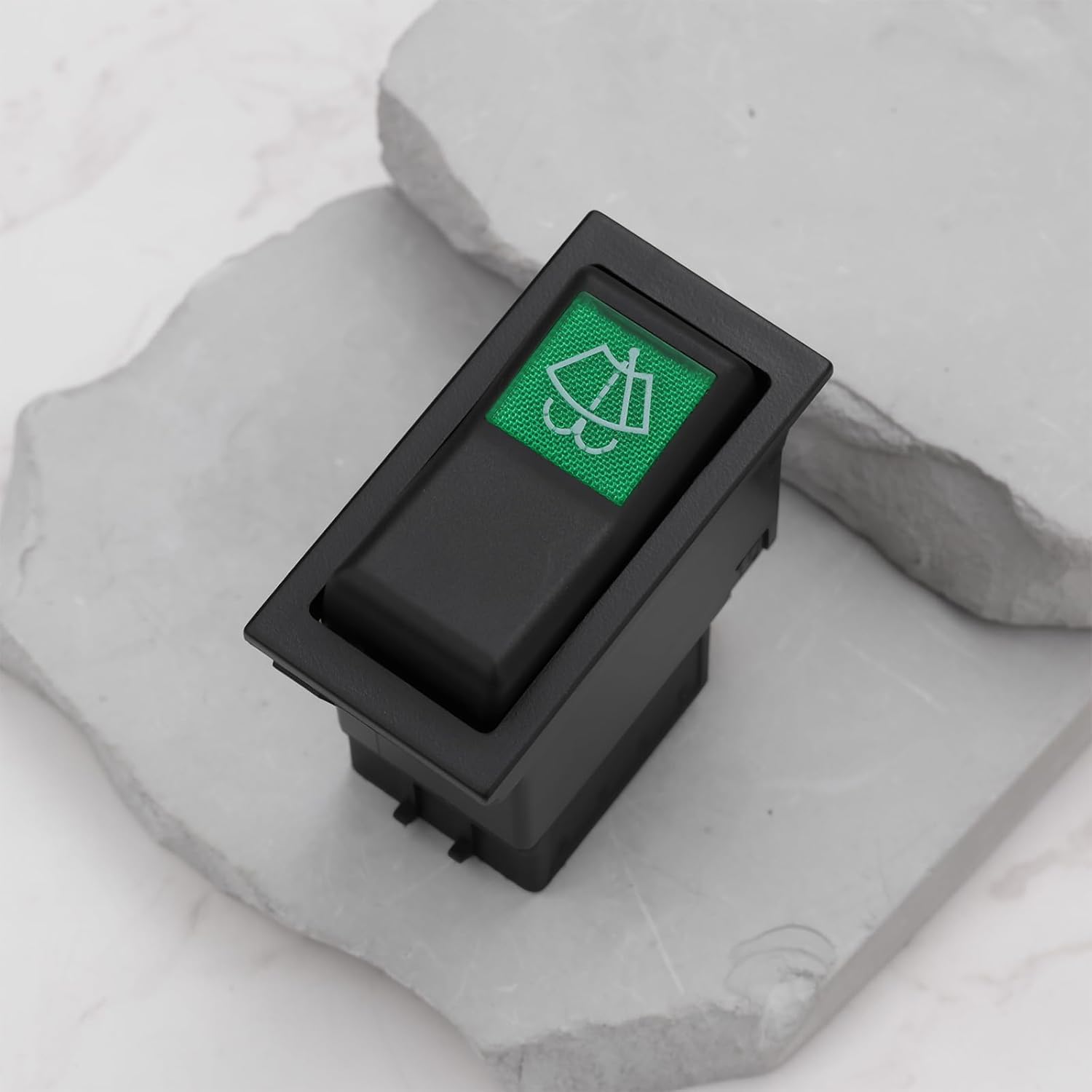

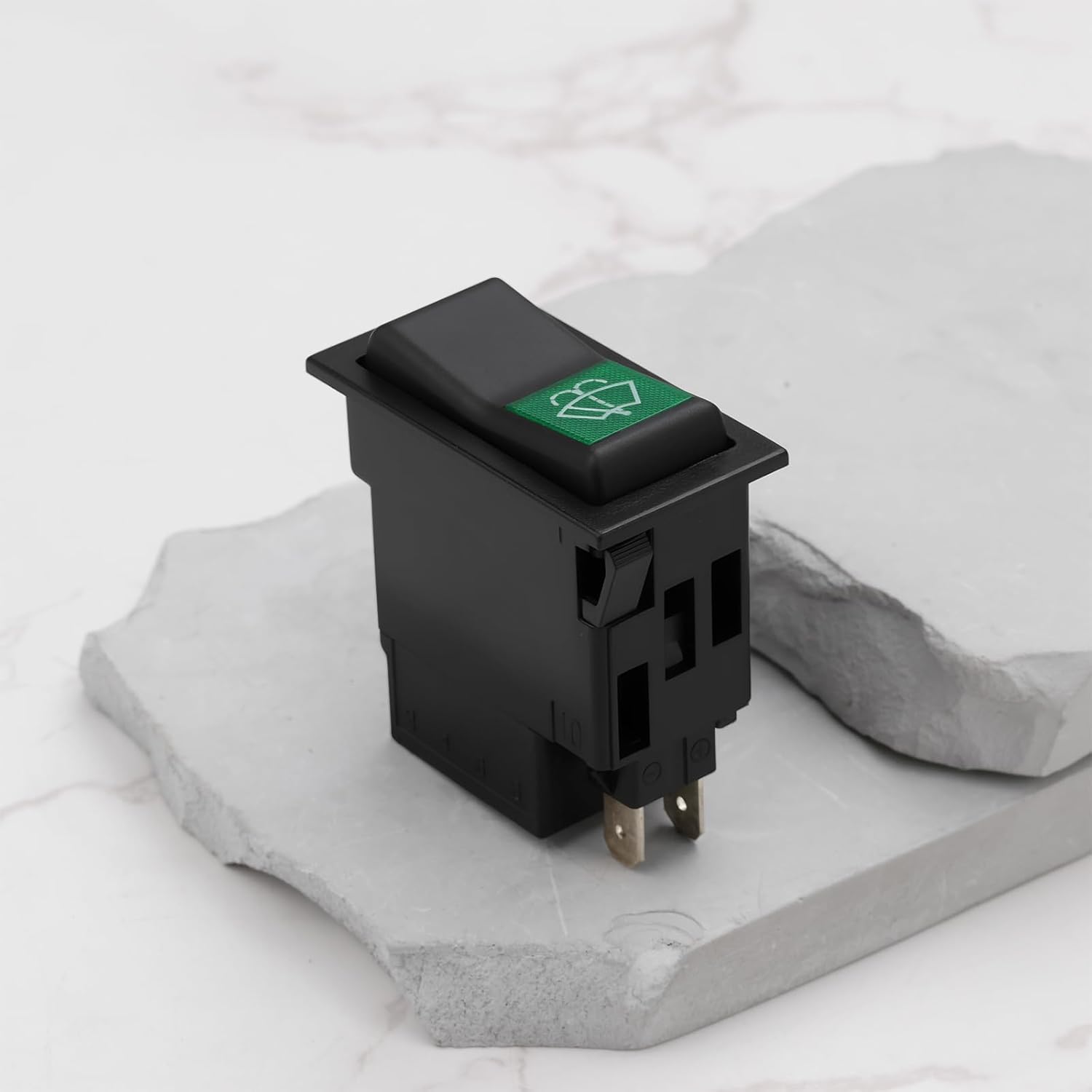

The shell is sturdy and durable, the internal contacts are designed to prevent oxidation, and the Kippschalter rocker design makes it easy to operate with one hand.

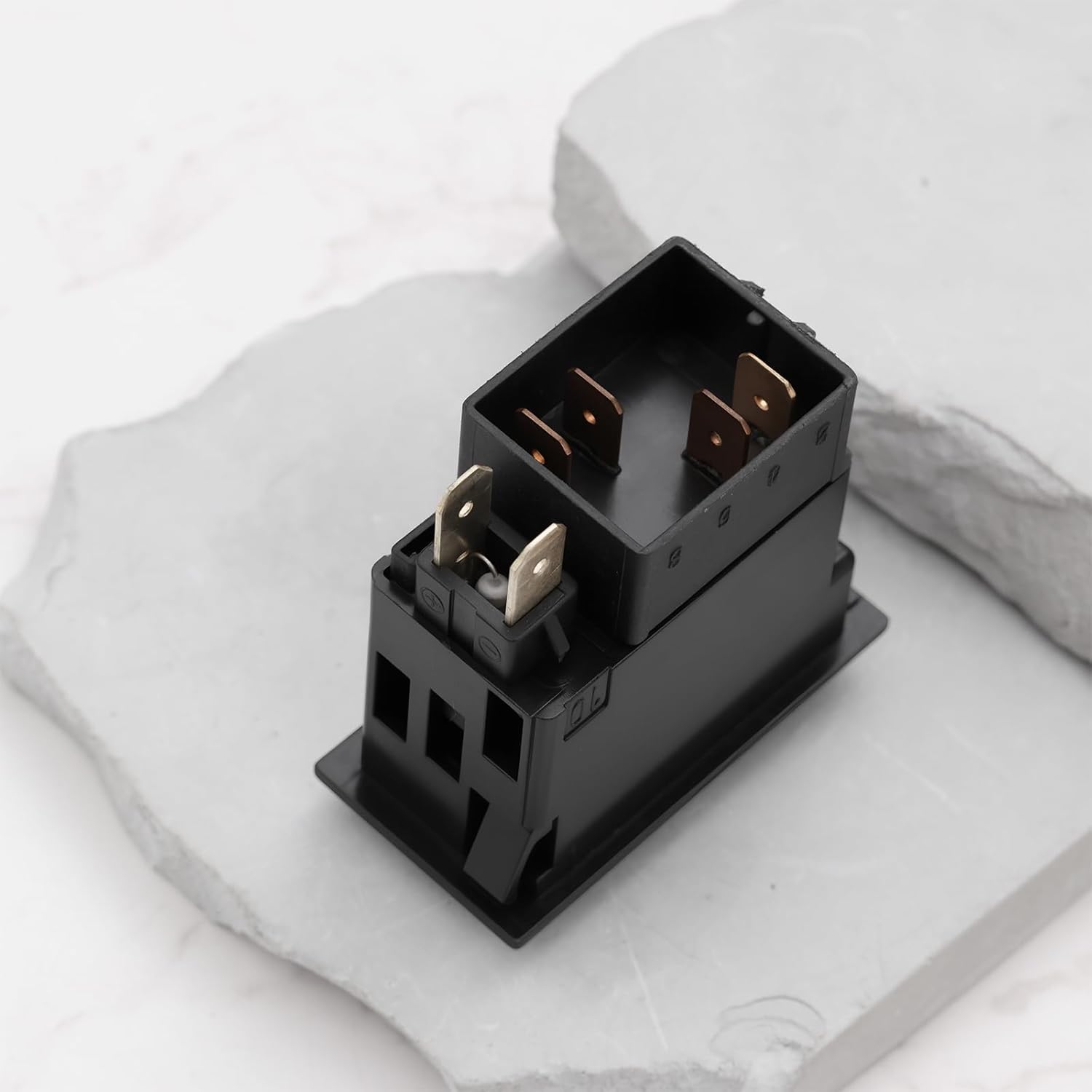

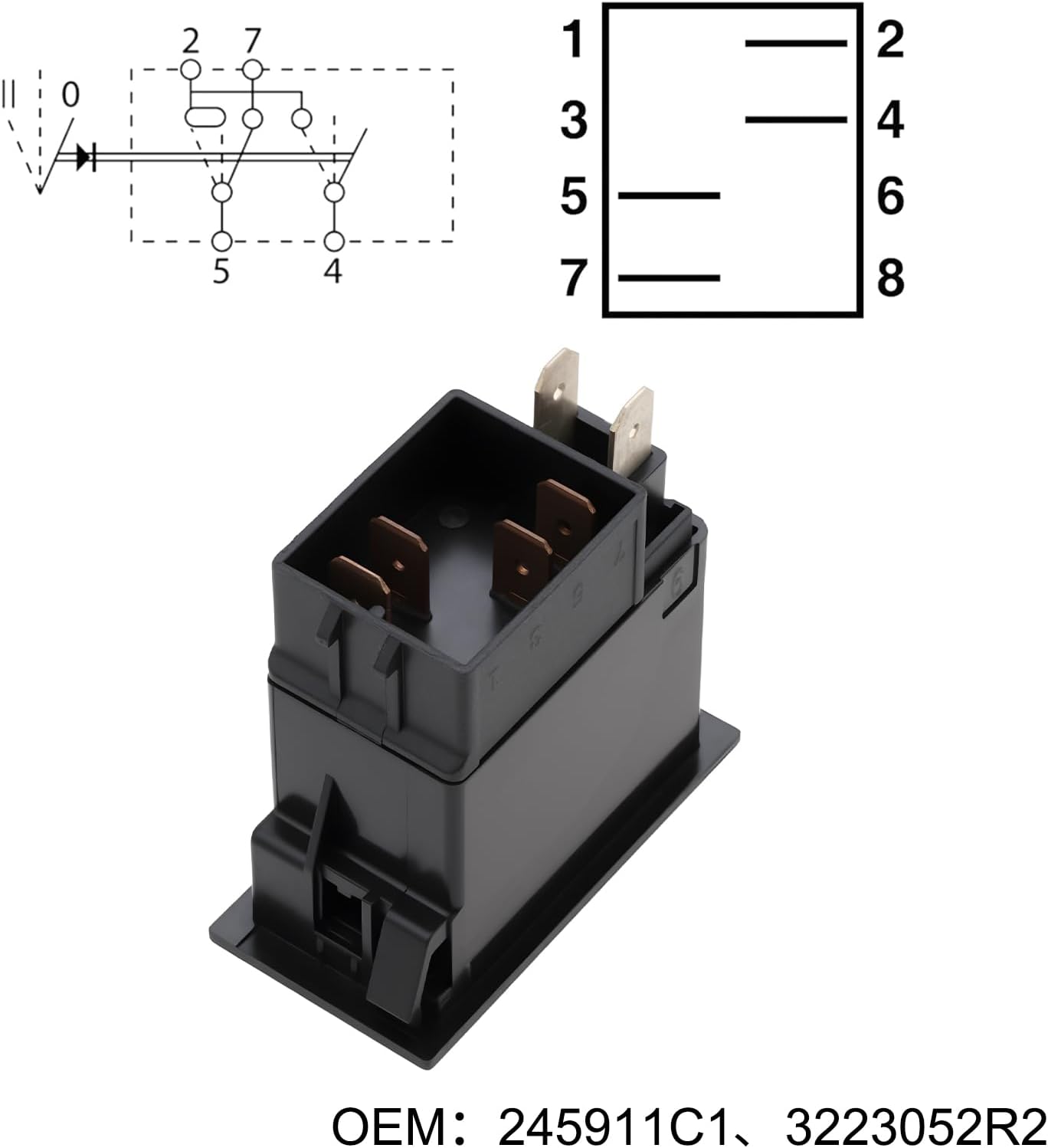

The pins adopt a six pin design, in addition to a pair of dual pins, there are also four independent pins, namely the four pins at positions 2, 4, 5, and 7. Please confirm if they are suitable before purchasing.

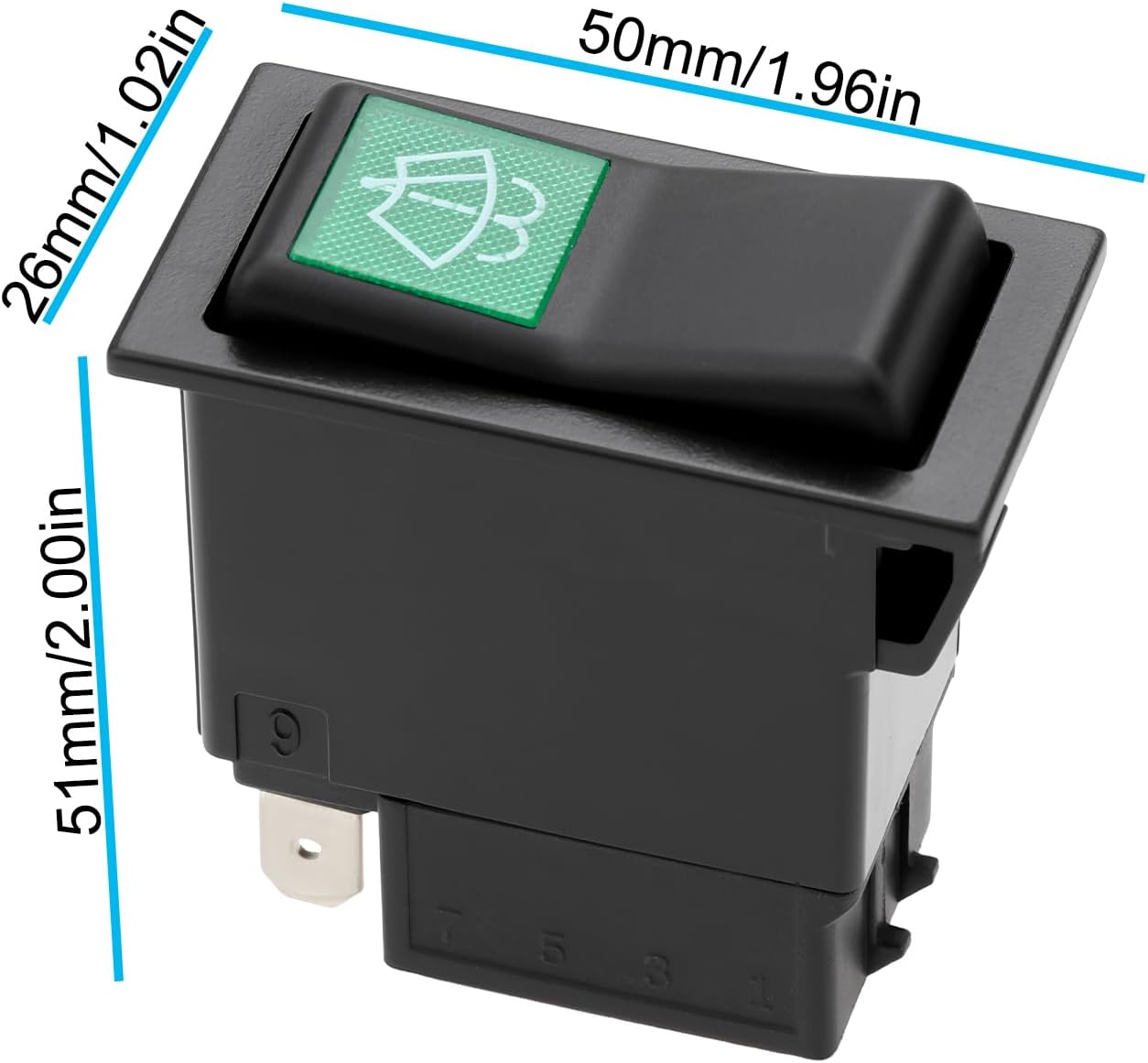

The overall size of the switch is 51x50x26mm, and the size at the four pin socket is 25×19.8mm. It adopts a snap in installation method, which is simple and convenient.
