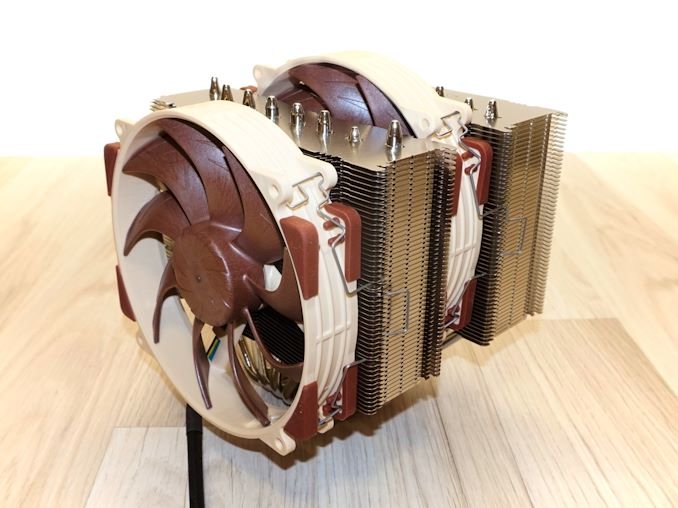

The Noctua NH-D15 G2 LBC Cooler Overview: Notoriously Huge, Extremely Good

If you purchase a retail pc CPU, it often comes with a regular cooler. Nonetheless, most fans discover that the inventory cooler simply doesn’t lower it by way of efficiency. So, they usually find yourself getting a extra superior cooler that higher fits their wants. Selecting the best cooler is not a one-size-fits-all deal – it’s a little bit of a journey. It’s important to take into account what you want, what you need, your funds, and the way a lot house you’ve in your setup. All these components come into play when selecting out the right cooler.

In relation to high-performance coolers, Noctua is a reputation that continuously comes up amongst fans. Identified for his or her distinctive construct high quality and excellent cooling efficiency, Noctua coolers have been a favourite within the PC constructing neighborhood for years. A typical Noctua cooler can be punctuated by extremely quiet followers and top-notch cooling effectivity total, which has made them splendid for overclockers and builders who wish to preserve their techniques operating cool and quiet.

On this evaluate, we’ll be taking a better take a look at the NH-D15 G2 cooler, the successor to the legendary NH-D15. This cooler comes with a hefty price ticket of $150 however guarantees to ship one of the best efficiency that an air cooler can at present obtain. The NH-D15 G2 is offered in three variations: one commonplace model in addition to two specialised variants – LBC (Low Base Convexity) and HBC (Excessive Base Convexity). These variants are designed to make higher contact with particular CPUs; the LBC is advisable for AMD AM5 processors, whereas the HBC is tailor-made for Intel LGA1700 processors, mirroring the marginally completely different geometry of their respective heatspeaders. Conversely, the usual model is an “one measurement matches all” method for customers who care extra about long-term compatibility over squeezing out each ounce of potential the cooler has.

For this evaluate, we’re wanting on the LBC model, as our strong copper testing station has no convexity, guaranteeing optimum efficiency analysis.

Packaging & Bundle

We acquired the NH-D15 G2 in a remarkably sturdy cardboard field. Noctua continues their custom of utilizing elegant, information-focused art work on the packaging of all their merchandise, choosing simplicity over flashy design. Their total packaging is manufactured from recyclable cardboard, with the only exception being the small plastic protect of the cooler’s base.

Contained in the field, the cooler was securely nestled beneath a number of layers of thick cardboard, guaranteeing glorious safety. The mounting {hardware} and extra equipment have been neatly organized in a smaller, compartmentalized field inside the primary bundle. We must always word that there is no mounting {hardware} for Threadripper or LGA20XX processors within the packaging, in all probability as a result of Noctua gives specialised options for these processors.

Alongside the standard mounting {hardware} required to put in the NH-D15 G2 onto a CPU socket, Noctua consists of a number of extra equipment. Contained in the field, you may discover a Torx screwdriver, a fan energy splitter cable, two “low noise” adapters to restrict fan pace, a tube of NT-H2 thermal grease, a thermal paste wipe, and a metallic case badge.

The Noctua NH-D15 G2 CPU Cooler

Noctua designed the NH-D15 G2 as their pinnacle air cooler, aimed toward attaining the best potential efficiency whereas adhering to the corporate’s minimalist and stylish design ethos, with no pointless decorations.

Bodily, the NH-D15 G2 is a large – although comparatively easy – CPU cooler. Absolutely assembled, it weighs over 1.5 kg, and that is regardless of the heavy use of light-weight aluminum.

Design-wise, Noctua has caught with a basic dual-tower design, with the array of fins floating above a small base and counting on heatpipes to switch thermal vitality away from that base to the primary physique of the cooler. This cooler options optimized asymmetrical fin stacks and an improved fan association that permits for a lowered fin spacing from 1.9mm to 1.6mm. This adjustment enabled the mixing of 23 further fins, rising the full fin floor space by 20% in comparison with the NH-D15. We must always word that the thinner fins are also a bit flimsier and will be simply broken if mishandled.

In comparison with the unique NH-D15, Noctua elevated the variety of heatpipes from six to eight. The heatpipes are manufactured from copper however are nickel-plated for sturdiness and aesthetics. The joints between the heatpipes and the fins are all soldered, guaranteeing most thermal switch and mechanical cohesion.

Regardless of these insertions, the NH-D15 G2 is barely smaller than its predecessor. The thick fin array and the presence of two followers make the cooler huge, however Noctua has ensured that it stays away from the PCI Categorical slots on a typical (m)ATX motherboard. Nonetheless, it could partially block some RAM slots, limiting RAM peak on these slots to 32 mm when each followers are put in (commonplace RAM peak).

Noctua’s engineers optimized airflow and acoustics through the use of two 140 mm followers as an alternative of 1. The followers used are the corporate’s personal designs with SSO2 engines (a mixture of fluid dynamic bearing with a magnetic levitation approach). Apparently, the 2 followers are literally barely completely different, as every has its personal pace score (1475 RPM & 1525 RPM). In line with the corporate, by barely offsetting the fan speeds by roughly 25 RPM, it minimizes undesirable harmonic results like periodic buzzing or intermittent vibrations. This system supposedly ensures smoother acoustic efficiency with out compromising cooling effectivity. Customers can additional alter the offset utilizing PWM management or low-noise adapters for customized acoustics.

The bottom of the cooler that makes contact with the processor is cut up into two components. The underside half is manufactured from nickel-plated copper, maximizing the warmth switch price from the CPU to the heatpipes. This can be very well-machined and clean. As we have beforehand famous, simply how convex the bottom is will rely on the model of the cooler – our LBC model seems to be completely flat, whereas the common and HBC variations can be more and more convex. The highest metallic brace serves solely as mechanical help.
