Portable Analyzing 50kHz-3GHz with Large 4.3inch Screen UHF VNA Analyzing Networking Measurement Equipment NanoVNA F

Price: EUR167.59
(as of May 05, 2026 13:57:23 UTC – Details)

Portable Analyzing 50kHz-3GHz With Large 4.3inch Screen UHF VNA Analyzing Networking Measurement Equipment

Features:
4.3-inch LCD screen, resolution 800×480, wide viewing angled, long use does not hurt the eyes
All-aluminum alloy casing is effectively shielding electromagnetic and ensuring measurement accuracy
5000mAh high capacity battery, the battery life can reach 7 hour
Full touchable screen design, with three side buttons at the same time, flexible and operational
USB power output is designed to 5V / 1A power output

Specifications:
Component: Aluminium
Size: Approx.14×7.3cm / 5.51×2.87inch
Frequency: 50kHz-3GHz
output power: 9dBm ( error within 1GHz: ±1dB)
Frequency accuracy: <0.5ppm
S21 dynamic: 70dB ( 1.5GHz), 60dB ( 3GHz)
2-port return loss: 20dB typ ( 1.5GHz), 13dB min ( 3GHz)
Number of calibration points: 101 points
Number of scanning points: 101 points
Number of traces: 4

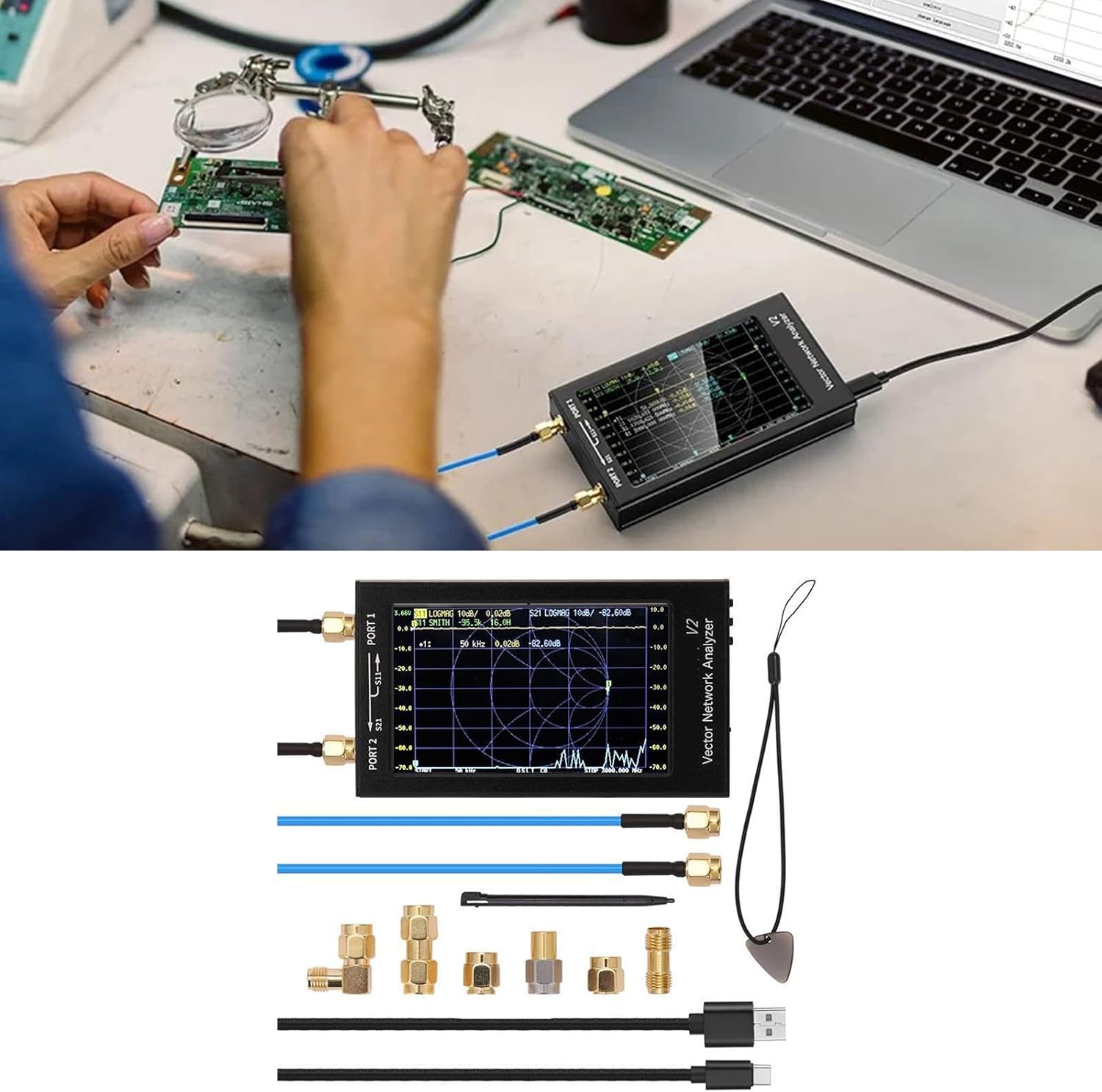

Package Includes:
1 Set Vector networking analyzing

Note:
1.Please allow 1-2cm errors due to manual measurement, making sure that you not mind before order
2.Due to the differences between different monitors, the picture may not reflect the actual of the item
5000mAh high capacity battery, the battery life can reach 7 hour
All-aluminum alloy casing is effectively shielding electromagnetic and ensuring measurement accuracy
4.3-inch LCD screen, resolution 800×480, wide viewing angled, long use does not hurt the eyes
USB power output is designed to 5V / 1A power output
Full touchable screen design, with three side buttons at the same time, flexible and operational
